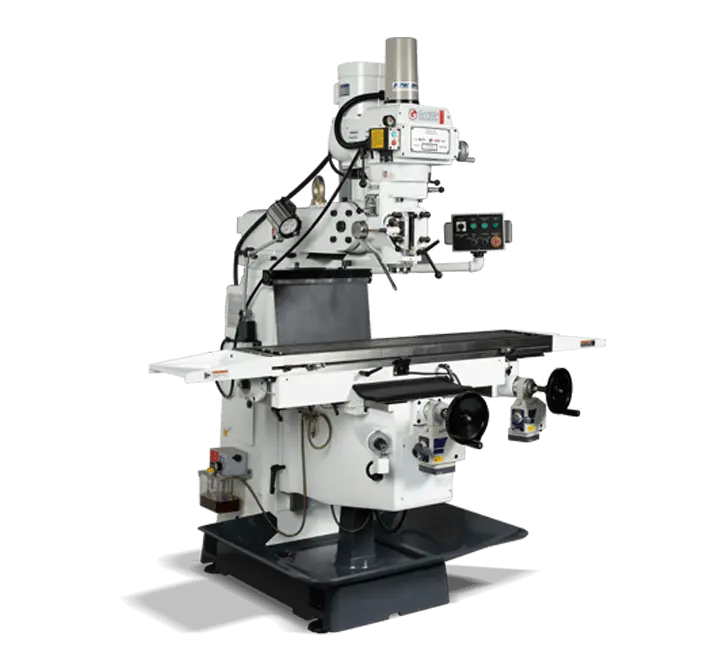

GANESH GMV-5 | 12” X 58” SUPER HEAVY DUTY 40 TAPER MILLING MACHINE
ConditionNew
New
Ganesh Heavy Duty Mills are available as a manual machine with digital Readout and as a CNC Machine with Fanuc Control. These knee and bed type mills are designed to be rugged and handle all your tough machining needs. The 50-Taper Geared Head Spindles on the vertical/horizontal manual and CNC bed type mills are built to handle everything from steel to Inconel. An optional manual 4th axis is available to access all sides of the part.
• Hi -Torque 1.5-HP knee powerfeed included to enhance operator efficiency
• Multiple knee and table locks for superior cutting rigidity
• T-slots ground to 5/8” to fit standard workholding nuts
• Automatic Metered Lubrication for slideways and lead screws
• Spring Loaded way cover is included for added safety and protection of machine
• Built-in coolant pump is included
• Coolant & Chip-Tray is included
• Water resistant halogen lamp is included
• Inspection Report on accuracy, Instruction Manual, Tools and Tool Box all included
• Large compliment of parts and accessories in stock to ensure continued operation
Ganesh Heavy Duty Mills are available as a manual machine with digital Readout and as a CNC Machine with Fanuc Control. These knee and bed type mills are designed to be rugged and handle all your tough machining needs. The 50-Taper Geared Head Spindles on the vertical/horizontal manual and CNC bed type mills are built to handle everything from steel to Inconel. An optional manual 4th axis is available to access all sides of the part.
Imperial
| Table-W | 12" |
| Table-L | 58" |
| Travel-Long | 40.5" |
| Travel-Cross | 15.75" |
| Power | 5 hp |
| RPM | 80 RPM |
| Taper | NT #40 |
| Weight | 3,740 lbs |
• Hi -Torque 1.5-HP knee powerfeed included to enhance operator efficiency
• Multiple knee and table locks for superior cutting rigidity
• T-slots ground to 5/8” to fit standard workholding nuts
• Automatic Metered Lubrication for slideways and lead screws
• Spring Loaded way cover is included for added safety and protection of machine
• Built-in coolant pump is included
• Coolant & Chip-Tray is included
• Water resistant halogen lamp is included
• Inspection Report on accuracy, Instruction Manual, Tools and Tool Box all included
• Large compliment of parts and accessories in stock to ensure continued operation
