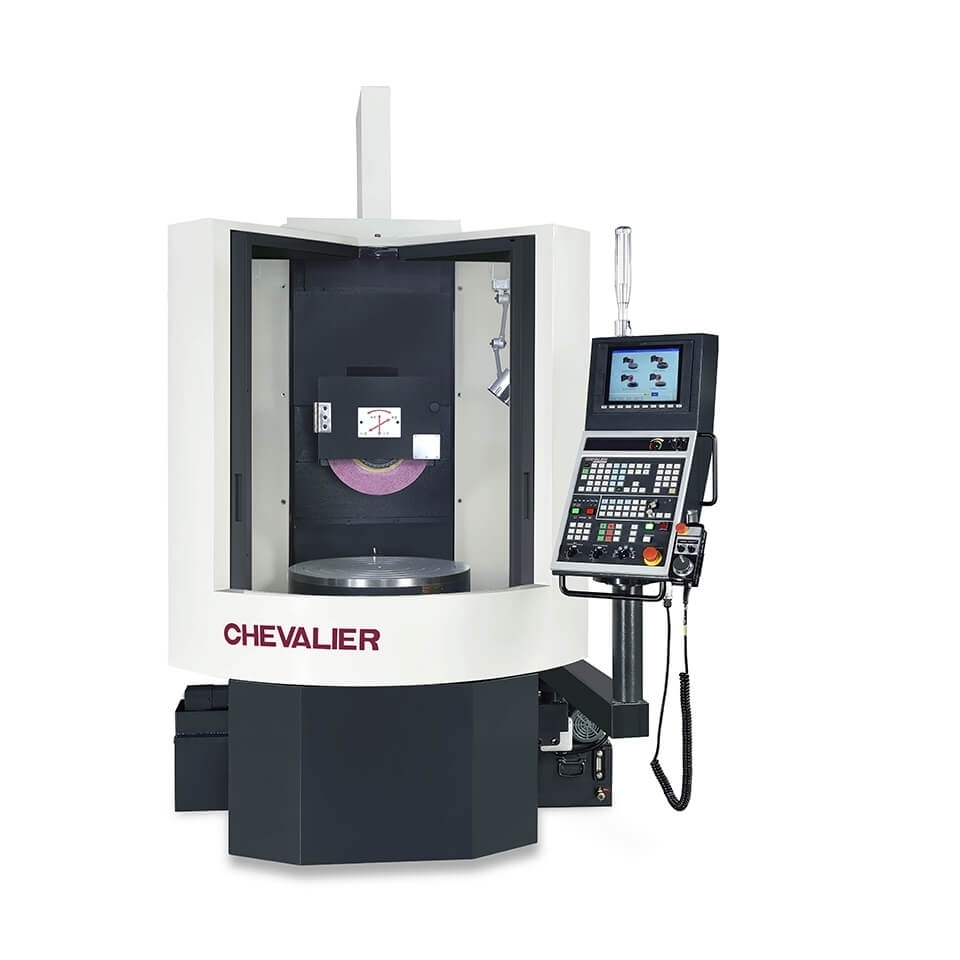

CHEVALIER FRG-400S | Rotary Surface Grinder with Hydrostatic Turntable
ConditionNew
New
• The rotary table is designed with hydrostatic bearings, which support the worktable through a uniform oil film, providing the mechanism with high vibration resistance and higher rotational precision than conventional bearings
• Adaptive finish program to adjust table rotation, infeed speed and grinding wheel speed for better finish
• The spindle is supported by six Class 7 (P4), ultra-precision angular contact ball bearings that can withstand heavy-duty grinding
• In-machine Dynamic Balancing allows operators to adjust the grinding wheel balance and limit wheel vibration to less than 1 um
• The brand-new spindle elevating mechanism and front-to-back transmission mechanism of the machine are equipped with linear guideways and ballscrew, combined with servo motor for direct transmission
• Optimized structure for maximum rigidity for maximal precision and efficacy
Control
SMART iControl
Capacity
Max. grinding radius R8.9"
Max. grinding height (elevating) 13.8"
Distance between table to spindle centerline 23.6"
Height from table to ground 32.3”
Max. table load 330 lbs.
Rotary table
Table size Ø15.7"
Table speed 10 ~ 150 rpm
Transverse movement (Z)
Max. travel 15"
Feed speed 0 ~ 9.75 fpm
Wheelhead elevation (Y)
Max. travel 17.7"
Feed speed 0 ~ 6.56 fpm
Spindle
Spindle speed 500 ~ 2,200 rpm
Spindle motor 10 HP
Wheel dimension
OD x Width x Bore Ø14” x 1.5” x Ø5
Machine dimensions
Floor space (W x D x H) 110.2” x 110.2” x 102.8”
Net weight 7,500 lbs.
