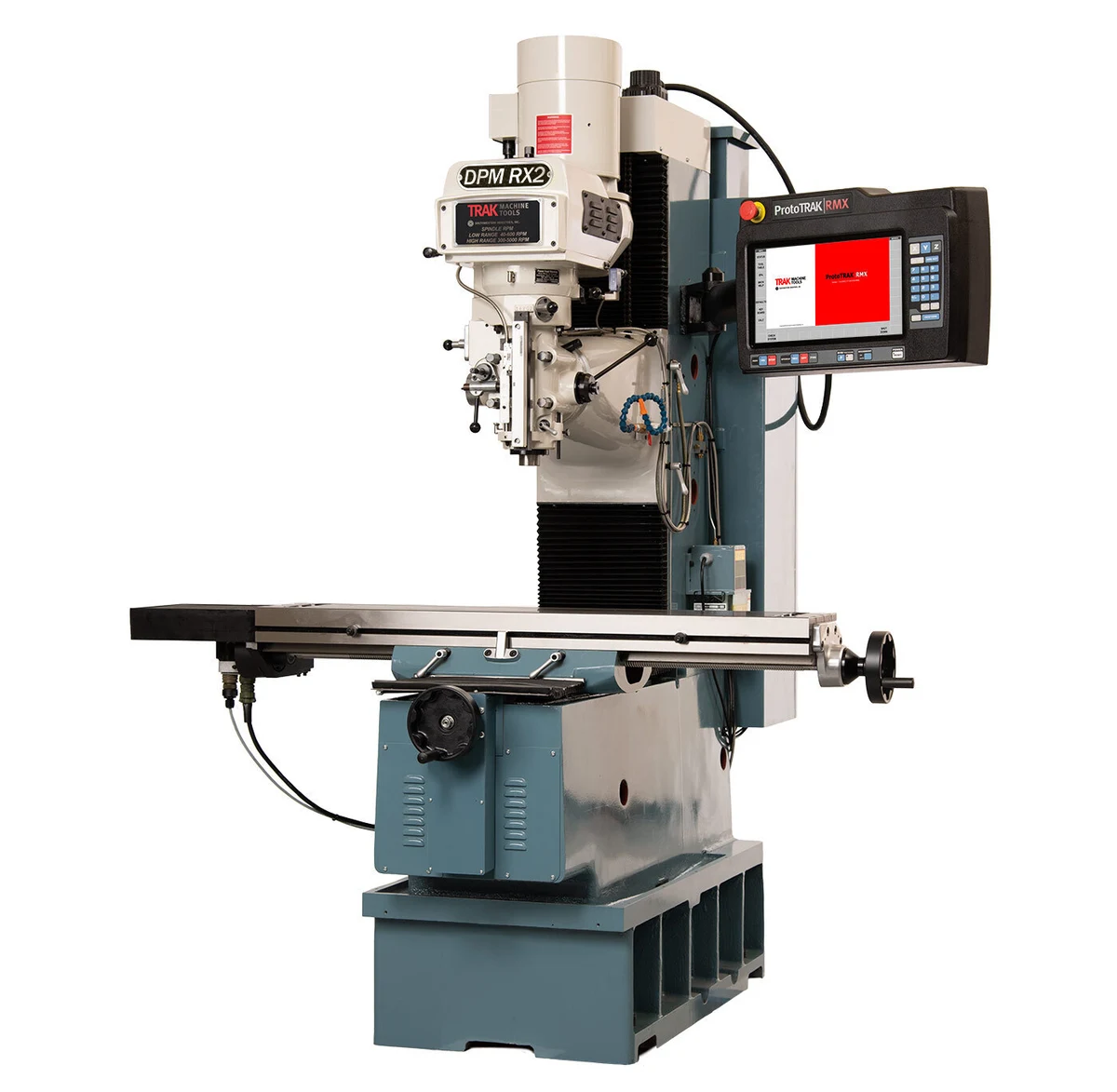

TRAK DPM RX2 w/ PROTOTRAK RMX CNC

Table Size 49″ x 9″
T-Slots (Number x Width) 3 x .63″ x 2.5″
Travel (X, Y, Z Axis)* 31″ x 16″ x 22″ Note
Quill Diameter 3 3/8″
Maximum Quill Travel 5″
Spindle Taper R8
Spindle Speed Range RPM 40 - 600, 300 - 5000
Spindle Center to Column Face 18.5″
Head Swivel (side to side) +/- 90°
Quill Feeds per Revolution of Spindle 0.0015/0.003/0.006″
Spindle Motor HP 3 HP
Power Requirements 200-240V, 3P, 27A
Maximum Weight of Workpiece 1320 lbs
Height Of Table From Bottom Of Bed 36.75″
Max Spindle Nose To Table 25.5″
Min Height 86.625″
Max Height 98.75″
Width Of Machine Including Table 71.25″
Overall Length With Electric Door Closed 73.31″
Overall Length With Electrical Door Open 93.88″
Overall Width Inc Full Table Traverse 102.53″
Footprint Of Machine 23.13″ x 40.5″
Weight Net / Shipping Lbs. 3200 / 3500
Rapid Traverse X, Y, Z Mechanical Handwheels: 250 IPM on X, Y and Z
Electronic Handwheels: 400 IPM on X and Y, 250 IPM on Z
Coolant Reservoir Capacity 10 gallons
Drilling Max Capacity (diameter) 1″ dia.
Milling Max Capacity 3 inch³/min
Tapping Max Capacity ¾ - 10

* DPM RX2 and RX3 - If you remove the way covers you can gain approximately 2″ of additional travel at the top. Values in the specifications table are with the way covers installed.
** Head swivel is limited to approximately 30° in the clockwise direction due to the pendant arm extension bracket.
