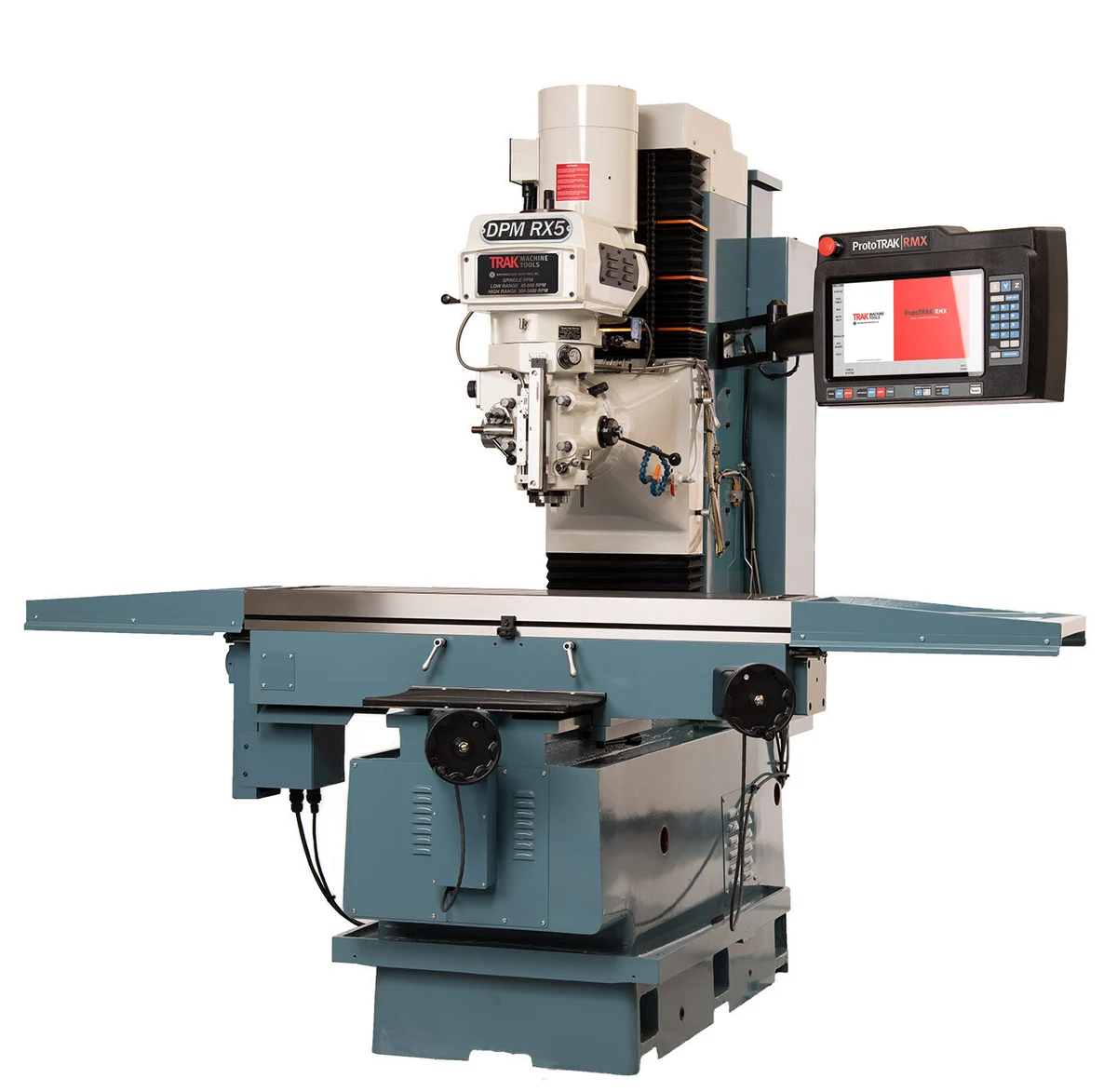

TRAK DPM RX5 w/ TRAK RMX CNC
ConditionNew
New
Standard Features:
• ProtoTRAK RMX CNC integrated into the machine at the factory
• Solid ram moves along the column providing mass for heavy cuts
• Generous Z-axis CNC travel
• Strong and rigid
• Efficient for any job: manual, 2-axis CNC or 3-axis CNC
• Standard electronic head for programmable spindle speeds and tapping
• Precision ground ballscrews installed in the table, saddle and column
• Manual quill with integrated quill and ram encoders
• Wide way surfaces are hardened and ground, slideways are Turcite® coated
• Real handwheels so you can work manually
ProtoTRAK CNC Model RMX
Table Size 50″ x 12″
T-Slots (Number x Width) 3 x .63″ x 2.52″
Travel (X, Y, Z Axis)* 41″ x 20.5″ x 24″
Quill Diameter 3 15/16″
Maximum Quill Travel 5″
Spindle Taper 40 Taper
Spindle Speed Range RPM 40 - 600, 300 - 5000
Spindle Center to Column Face 20.5″
Head Swivel (side to side) +/- 90°
Quill Feeds per Revolution of Spindle 0.0015/0.003/0.006″
Spindle Motor HP 5 HP
Power Requirements 200-240V, 3P, 35A
Maximum Weight of Workpiece 1760 lbs
Height Of Table From Bottom Of Bed 40″
Max Spindle Nose To Table 25.81″
Min Height 87.5″
Max Height 102″
Width Of Machine Including Table 94.13″
Overall Length With Electric Door Closed 82.5″
Overall Length With Electrical Door Open 103″
Overall Width Inc Full Table Traverse 131.06″
Footprint Of Machine 24″ x 48.4″
Weight Net / Shipping Lbs. 4400 / 4700
Rapid Traverse X, Y, Z 400 IPM on X and Y, 250 IPM on Z
Coolant Reservoir Capacity 10 gallons
Drilling Max Capacity (diameter) 1″ dia.
Milling Max Capacity 5 inch³/min
Tapping Max Capacity 1 - 8
* DPM RX2 and RX3 - If you remove the way covers you can gain approximately 2″ of additional travel at the top. Values in the specifications table are with the way covers installed.
** Head swivel is limited to approximately 30° in the clockwise direction due to the pendant arm extension bracket.
