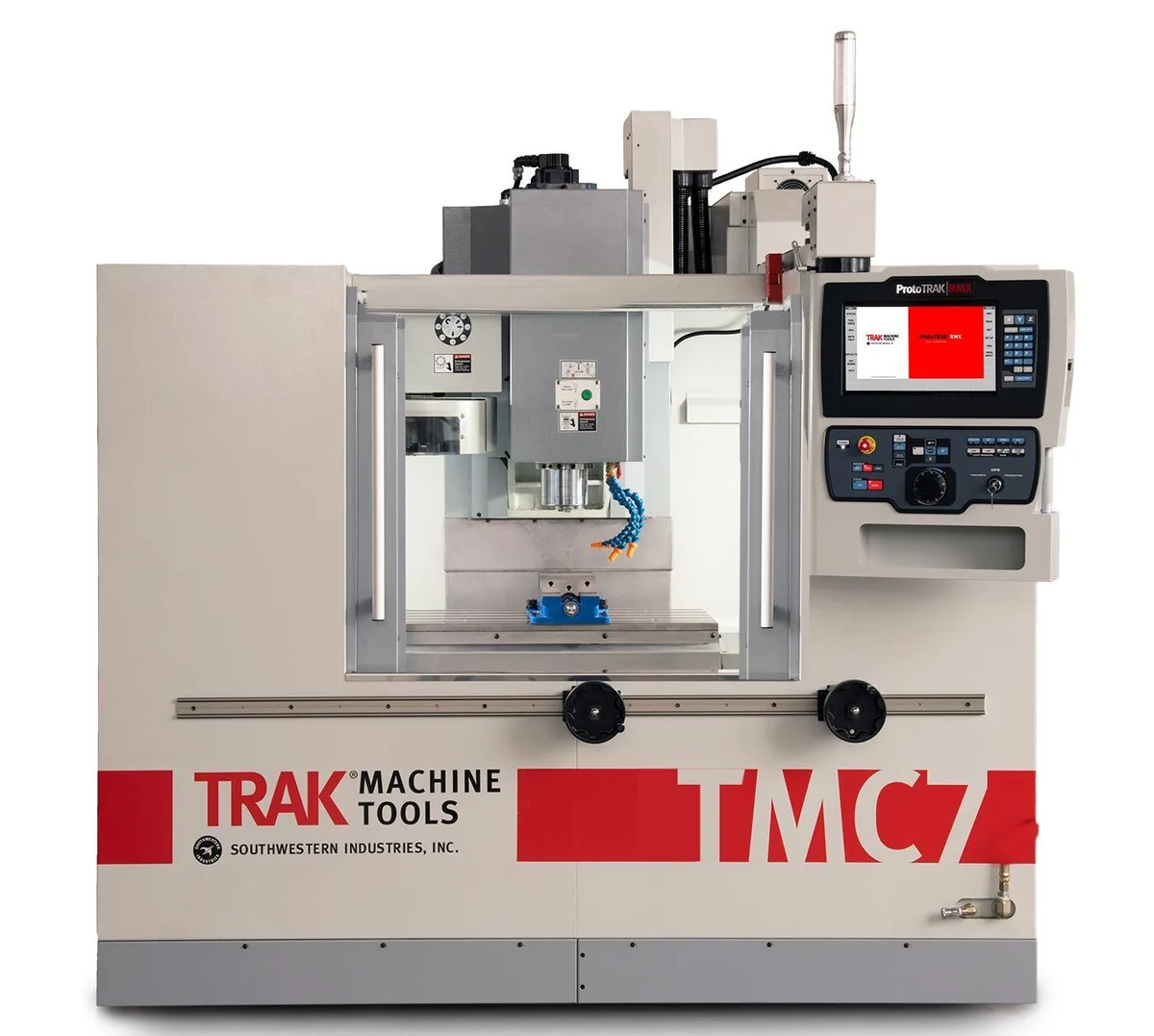

TRAK TMC7 Toolroom Machining Center w/ ProtoTRAK RMX CNC
ConditionNew
New
The Versatile Machine That Works Two Ways
TOOLROOM OPS™ - when you need the TMC to work like a TRAK bed mill, but with chips and coolant contained
• Optional Electronic Handwheels (x, y, and z)
• Selectable 2 or 3 axis CNC
• Full DRO for manual operations
PRODUCTION OPS - when you need to run small to medium production quantities
• 16-tool carousel tool changer along with manual tool change for additional tools
• Convenient Tool Table fly out window
• Fully enclosed ANSI compliant operation
Table size 35.43″ x 19.69″
Travel (X, Y, Z axis) with soft limits 30″ x 20″ x 20″
Rapid traverse X, Y, Z 400 IPM in Toolroom Ops
1,000 IPM in Production Ops
T-slots (number x width x pitch) 5 x .709″ x 3.937″
Spindle taper 40 Taper
Spindle speed range 50 - 8,000 RPM
50 - 12,000 RPM (optional)
Spindle nose diameter 3″
Tool clamping force (90 psi) 1,500 lbs
Tool holder type CAT 40 or BT 40
ATC tool capacity 16
Maximum tool weight (incl. holder) 15 lbs
Maximum tool diameter 3.14″
Carousel speed .8 sec from station to station
Tool selection system Bi-directional/shortest path
Spindle motor HP - peak 15 HP
Spindle motor HP - continuous 10 HP
Power requirements
Standard (208V)
8K Spindle 208V (200-240V is acceptable), 3P, 68A
(Current can be as high as 87 amps with all options ordered - CTS (+14A), 4th axis (+5A))
Power requirements
Standard (208V)
12K Spindle 208V (200-240V is acceptable), 3P, 69A
(Current can be as high as 88 amps with all options ordered - CTS (+14A), 4th axis (+5A); includes cooler current)
Power requirements
Optional (480V)
8K Spindle 480V with transformer option (432-528V is acceptable), 3P, 46A
46 amps based nominal rated current of transformer
Power requirements
Optional (480V)
12K Spindle 480V with transformer option (432-528V is acceptable), 3P, 46A
46 amps based nominal rated current of transformer
Maximum weight of workpiece 1,000 lbs
Height of table from bottom of bed*** 38″
Min. spindle nose to table distance **** 3.5″
Max. spindle nose to table distance **** 23.50″
Distance of tool carousel to table 17.50″
Spindle center to spindle head casting face 18.25″
Min. machine height *** 90″
Max. machine height (head all the way up) *** 106.5″
Overall width of machine with side doors open, auger chute and chip container in place 167.25″
Overall length of machine with electrical cabinet fully open 180° 152″
Footprint of machine with coolant tank & auger in place and pendant rotated 90° (width x length) 97″ x 135″
Weight net / shipping (lbs) 8,360 / 8,710
Coolant capacity 56 gal
Coolant pump and wash power 750 Watt
Air - CFM (at 90 psi), SCFM 2.5 CFM, 18 SCFM
Air quality Air dried/water separator upstream of TMC
Lubrication pump capacity 2 liter
