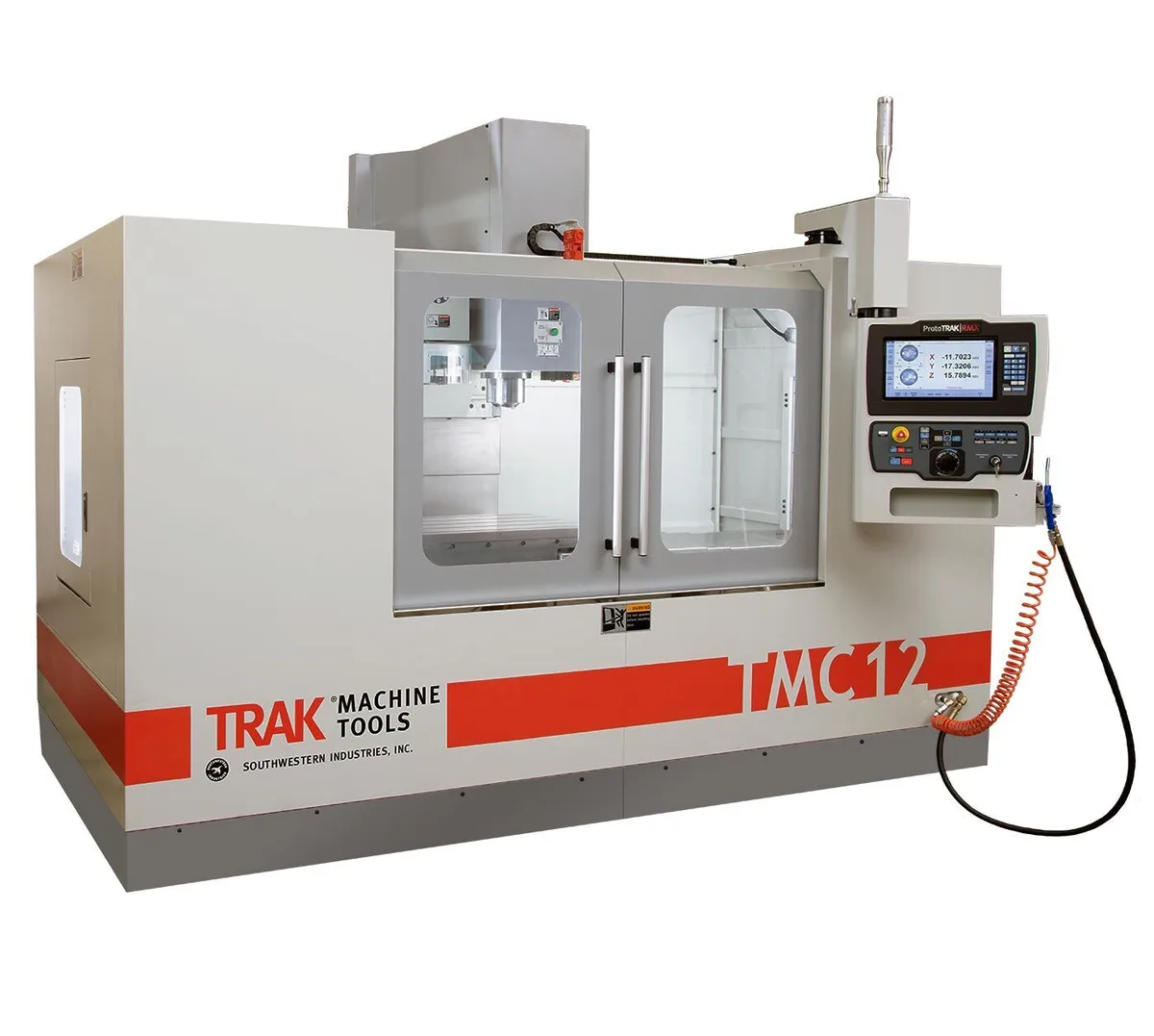

TRAK TMC12-12K Toolroom Machining Center w/ PROTOTRAK TRAK RMX CNC

Table size 51.18″ x 23.62″
Travel (X, Y, Z axis) with soft limits 50″ x 27″ x 25″
Rapid traverse X, Y, Z 400 IPM in Toolroom Ops
1,000 IPM in Production Ops
T-slots (number x width x pitch) 5 x .709″ x 3.937″
Spindle taper 40 Taper
Spindle speed range 50 - 8,000 RPM , 50 - 12,000 RPM (optional)
Spindle nose diameter 3.75″
Tool clamping force (90 psi) 2,200 lbs
Tool holder type CAT 40 or BT 40
ATC tool capacity 16
Maximum tool weight (incl. holder) 15 lbs
Maximum tool diameter 3.14″
Carousel speed .8 sec from station to station
Tool selection system Bi-directional/shortest path
Spindle motor HP - peak 22.5 HP
Spindle motor HP - continuous 15 HP
Power requirements
Standard (208V)
8K Spindle 208V (200-240V is acceptable), 3P, 93A
(Current can be as high as 112 amps with all options ordered - CTS (+14A), 4th axis (+5A))
Power requirements
Standard (208V)
12K Spindle 208V (200-240V is acceptable), 3P, 96A
(Current can be as high as 115 amps with all options ordered - CTS (+14A), 4th axis (+5A); includes chiller current)
Power requirements
Optional (480V)
8K Spindle 480V with transformer option (432-528V is acceptable), 3P, 48A
(Current can be as high as 57 amps with all options ordered - CTS (+6A), 4th axis (+3A))
Power requirements
Optional (480V)
12K Spindle 480V with transformer option (432-528V is acceptable), 3P, 49A
(Current can be as high as 58 amps with all options ordered - CTS (+6A), 4th axis (+3A); includes chiller current)
Maximum weight of workpiece 2,200 lbs
Height of table from bottom of bed*** 38.37″
Min. spindle nose to table distance **** 2.25″
Max. spindle nose to table distance **** 28.75″
Distance of tool carousel to table 21.50″
Spindle center to spindle head casting face 27.56″
Min. machine height *** 105″
Max. machine height (head all the way up) *** 120.5″
Overall width of machine with side doors open, auger chute and chip container in place 206.27″
Overall length of machine with electrical cabinet fully open 180° 156.22″
Footprint of machine with coolant tank & auger in place and pendant rotated 90° (width x length) 133.86″ x 144.76″
Weight net / shipping (lbs) 14,300 / 14,800
Coolant capacity 71 gal
Coolant pump and wash power 750 Watt
Air - CFM (at 90 psi), SCFM 3.0 CFM, 25 SCFM
Air quality Air dried/water separator upstream of TMC
Lubrication pump capacity 2 liter

Specifications subject to change.
*** Height changes slightly based on how machine is leveled on leveling screws.
**** Can vary slightly due to home switch location and soft limit settings.
