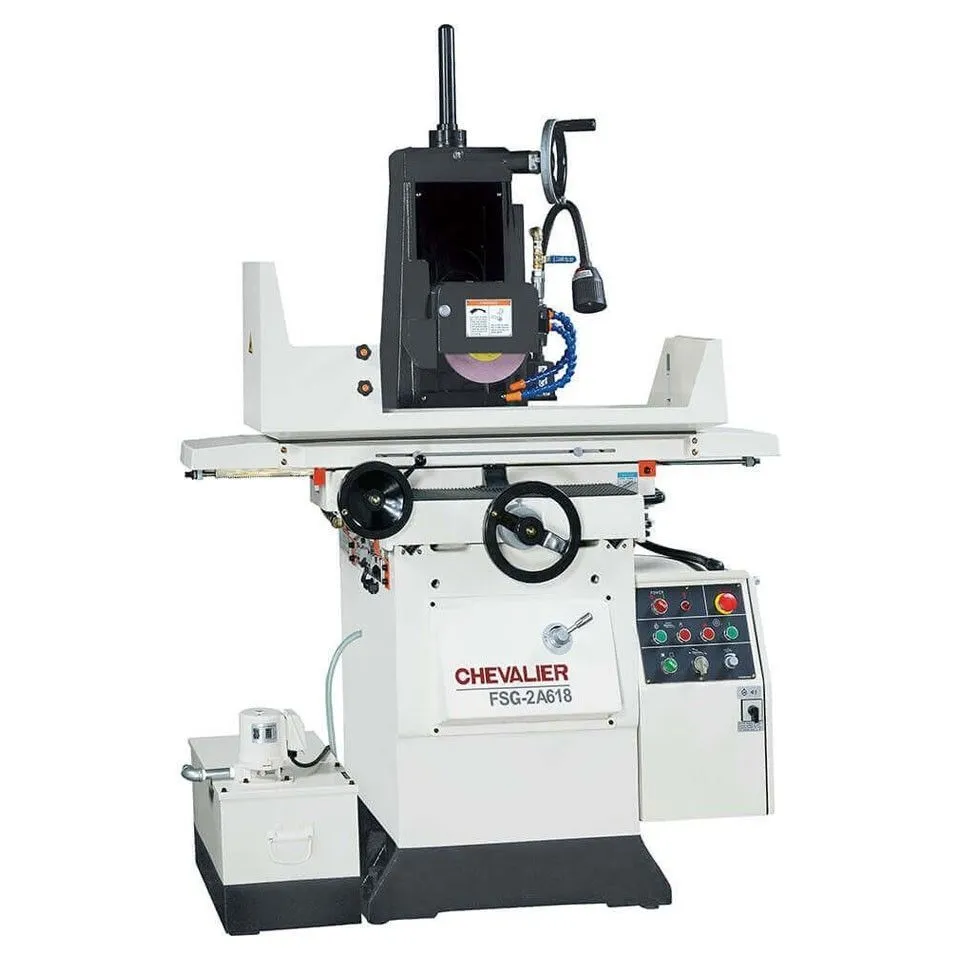

CHEVALIER FSG-2A618
ConditionNew
New
These high precision surface grinders have been specially developed and improved in recent years. The optimum span of double V crossfeed guideways is designed based on bending moment, Kinematics and supporting force. All essential castings are made of high grade of cast iron that is stress relieved through annealing to eliminate internal stress.
A mirror surface can be accomplished on these machines accurately and efficiently due to machine construction features and the specially designed V3 grade spindle motor that provide excellent rigidity and stability. With the greatest stiffness and stability of the castings, these machines are suitable for precision surface grinding. These grinders are offered with one-full-year limited warranty for mechanical and electrical parts.
FEATURES:
- 2-axis with automatic power table (in & out, left & right)
- 2 HP low vibration spindle motor
- High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding
- Spindle runout shall be within 0.000060"
- Separate hydraulic system prevents vibration & reduces heat transference
- Proximity switches are utilized to simplify table stroke adjustment
- Hardened and ground table guideways with steel balls
- Flatness is guaranteed to be 0.0001" for the entire working surface
- Automatic continuous lubrication system with oil flow indicator on column
- Saddle travels on hand scraped double V guideways laminated with Turcite B
- Meehanite casting used
STANDARD ACCESSORIES:
- Diamond dresser w/diamond (table type)
- Balancing arbor
- One grinding wheel & hub
- LED machine lamp
- Leveling screw set & pads
- Toolbox and tools
- Operating manual & parts list
- Splashguard & nozzle
- Automatic lubricator
- Exhaust Hood
