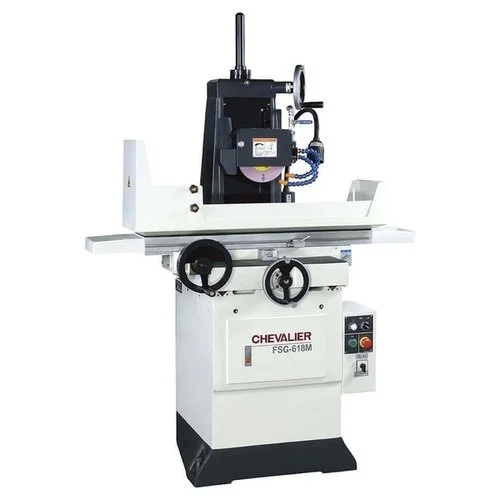

New CHEVALIER FSG-618M | Surface Grinders
ConditionNew
New
- All essential castings are mode of high grade Meehanite ®cast iron that is stress relieved through annealing to eliminate internal stress.
- With the greatest stiffness and stability of the castings, this machine is suitable for both precision surface grinding and form grinding.
- The interlock between electrical cabinet door and power supply is established to ensure safe operation.
- The spring loaded type table travel stops will dampen the over travel caused by abnormal operations.
- Saddle travels on Turcite-B coated and hand scraped double V guideways.
- All essential castings are mode of high grade Meehanite ®cast iron that is stress relieved through annealing to eliminate internal stress.
- With the greatest stiffness and stability of the castings, this machine is suitable for both precision surface grinding and form grinding.
- The interlock between electrical cabinet door and power supply is established to ensure safe operation.
- The spring loaded type table travel stops will dampen the over travel caused by abnormal operations.
- Saddle travels on Turcite-B coated and hand scraped double V guideways.
Imperial
| Table-W | 6" |
| Table-L | 18" |
| Horz/Vert | Horz |
| Power | 2 hp |
| Grinding Wheel Width | 0.5" |
| Grinding Wheel Dia. | 8" |
| Dimensions | 54"x48"x80" |
| Weight | 2000 (LBS) |
