New CHEVALIER FSG-4060DC | Surface Grinders
ConditionNew
New

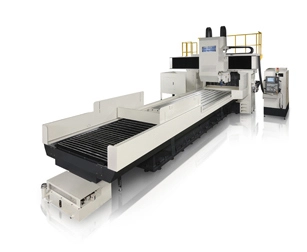

The Double Column CNC Grinder, fixed beam type features a wide, extended table for grinding medium to large workpieces for aircraft, wind turbine, automotive, power generation, oil exploration, mining, locomotive and heavy machinery.
Control
SMART iControl
Capacity
Grinding length 59.1"
Grinding width 39.4"
Horizontal head - distance between table to spindle centerline 35.4” (opt. vertical head 45.3")
Max. table load 3,500 lbs.
Table
Table size 39.4” x 59.1”
Distance between columns 55"
Table speed (variable) 16.4~82 fpm
Max. table travel 66.9"
Transverse movement
Max. travel 49.2"
Feed speed 0~16.4 fpm
Wheelhead elevation
Horizontal head - Max. travel 27.6"
Feed speed 0~3.2 fpm
Spindle
Horizontal head 500~2,000 rpm
Grinding wheel
Wheel Dimension Ø 20” x 4” x Ø 5”
Motors
Horizontal spindle motor 25 HP
Dimension/Weight
Floor space (W x D x H) 200.8” x 413.4”x 171.3”
Net weight 39,000 lbs.
