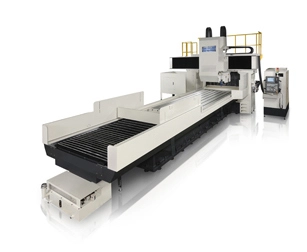

New CHEVALIER FSG-5060DC | Surface Grinders
ConditionNew
New
• High precision cartridge type spindle is equipped with four pieces of Class 7 (P4) angular contact ball bearings plus a set of N-N needle roller bearings in front of spindle.
• Precision ball screws (C3 grade) on cross-feed and down-feed axes are directly coupled to Delta AC servo motors.
• Roller type linear guideway design for longitudinal movement of spindle head
• Automatic cycle + continuous flow lubrication system for guideways, ball screw and table.
Control
SMART iControl
Capacity
Grinding length 59.1”
Grinding width 49.2”
Horizontal head - distance between table to spindle centerline 35.4” (opt. vertical head 45.3")
Max. table load 8,800 lbs.
Table
Table size 49.2” x 59.1”
Distance between columns 65"
Table speed (variable) 16.4~82 fpm
Max. table travel 165.4”
Transverse movement
Max. travel 59.1”
Feed speed 0~16.4 fpm
Wheelhead elevation
Horizontal head - Max. travel 27.6"
Feed speed 0~3.2 fpm
Spindle
Horizontal head 500~2,000 rpm
Grinding wheel
Wheel Dimension Ø 20” x 4” x Ø 5”
Motors
Horizontal spindle motor 25 HP
Dimension/Weight
Floor space (W x D x H) 220.5” x 413.4 x 175.6”)
Net weight 44,000 lbs.
