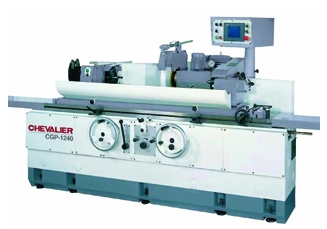

CHEVALIER CGP-1224: New universal cylindrical grinder with a 12.59" swing and 23.6" centers. Features include 1 hp workhead power, 450 RPM speed, and a 14" grinding wheel diameter. Ideal for precision grinding tasks.
ITEM Description S.A.E. Metric
Control – –
Table Swivel Angel -3˚, +13˚
Traverse Speed 50 / 4000 mm/min
Capacity Distance between centers 23.6" 600 mm
Swivel over table 12.6" 320 mm
Max. load of centers 330 lbs. 150 kg
Maxi. external grinding 11.8" 300 mm
Wheel head Swivel Angel ±30˚ –
Manual Distance 6.3" 160 mm
Auto Rapid Traverse 1.57” 40 mm
Wheel O.D. x Width x I.D. 14" x 2" x 5" 355 x 50 x 127 mm
Speeds 50Hz: 1,783 rpm / 60Hz: 1,940 rpm –
Spindle Spindle Speeds 16~300 rpm (Servo motor) –
Tailstock Swivel Angel MT4 –
Traverse Speed 50/4,000 mm/min
Motor Wheel Spindle 5 HP (4 P) –
Workhead Spindle 0.8 kW (AC servo motor) –
Machine Dimensions Floor space (W x D x H) 131" x 71" x 68" 3,315 x 1,800 x 1,730 mm
Net weight 5,940 lbs. 2,700 kg
FEATURES
- Hydrostatic spindle bearings for precision grinding
- Precision ballscrew driven by AC digital servo motor
- Mitsubishi PLC control with touch screen operation
- Wheelhead repeatability of 0.000050”
- Variable speed workhead 16-300rpm, 0.8kw AC servo motor
- Table travels on one V, one flat guideway
- Machine castings are fully ribbed and are made of dense, high grade Meehanite cast iron
- Tailstock center is capable of absorbing thermal expansion of workpieces
- Rough grinding, fine grinding and sparkout in one setting
- Wheel head retracts to original setting point after grinding cycle is complete
- Work head through hole 32mm & M.T.5
- 5HP wheel head motor
