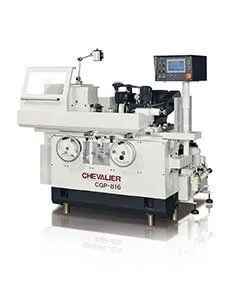

New CHEVALIER CGP-816 | Universal Cylindrical Grinders
ConditionNew
New
The CHEVALIER CGP-816 Universal Cylindrical Grinder available. Key features: 7.9" swing, 15.7" centers, 3 hp power, 450 RPM workhead speed, and 12" grinding wheel diameter. Ideal for precision grinding tasks in your workshop.
KEY FEATURES:
Friction-free hydrostatic spindle bearing for precision grinding
Precision ball screw driven by AC digital servo motor
Mitsubishi PLC control with touch screen operation
High-grade Nichrome steel SNCM-220 wheel head
Table travels on one V, one flat guideway
Machine castings are fully ribbed and are made of dense, high-grade Meehanite cast iron
Tailstock center is capable of absorbing thermal expansion of work piece
Rough grinding, fine grinding and spark-out in one automated cycle.
Wheelhead retracts to park unload point after grinding cycle is completed
ITEM Description S.A.E. Metric
Control – –
Table Swivel Angel -3˚, +12˚
Traverse Speed 50 / 4000 mm/min
Capacity Distance between centers 15.7" 400 mm
Swivel over table 7.9" 200 mm
Max. load of centers 132 lbs. 60 kg
Maxi. external grinding 7.09" 180 mm
Wheel head Swivel Angel ±30˚ –
Manual Distance 5.2" 135 mm
Auto Rapid Traverse 1" 25 mm
Wheel O.D. x Width x I.D. 12" x 1.5" x 5" 305 x 38 x 127 mm
Speeds 50Hz: 2,085 rpm / 60Hz: 2 ,495 rpm –
Spindle Spindle Speeds 10~300 rpm (Inverter type) –
Tailstock Swivel Angel MT3 –
Traverse Speed 50/4,000 mm/min
Motor Wheel Spindle 3 HP (4 P) –
Workhead Spindle 1 HP (Inverter) –
Machine Dimensions Floor space (W x D x H) 93" x 65" x 68" 2,370 x 1,650 x 1,730 mm
Net weight 4,400 lbs. 2,000kg
STANDARD ACCESSORIES
- Coolant system with automatic paper Feed & magnetic separator
- Splash guards
- Balancing arbor
- Leveling pad and screws
- Tailstock
- Wheel flange and weights
- 12" grinding wheel
- Variable speed workhead
- Toolbox with adjusting tools
- Carbide tipped centers M.T.3 (2 pcs)
- Dial indicator
- Automatic lube system
- Wheel extractor
- Dressing attachment with diamond
- Operating manual and parts list
- Cam lock type driving dog
- OD wheel spindle frequency control
