Known for dimensional accuracy, these machines come equipped with 3-axis automatic movement with incremental downfeed, electronic auto-crossfeed, and proportional valve hydraulic powered table movement. They also feature a full-featured electronic control with glass-scale closed loop feedback on Z-axis.

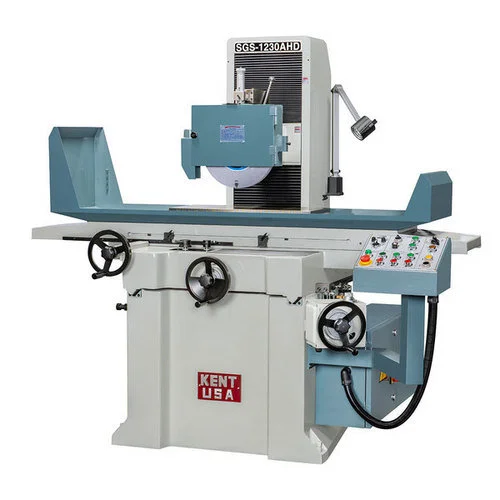

Specification SGS-1230AHD
Working Capacity 12" x 30"
Table Travel 33"
Saddle Travel 13"
T-Slot 1 x 9/16”
Spindle Motor 5 HP
Spindle Speed 1750 RPM
Grinding Wheel 14” x 1¼” x 5”
Vertical Graduation 0.0005"
Vertical Revolution 0.100"
Auto Downfeed Increment 0.0001" 10 Steps
Spindle to Table 23.6"
Net Weight 4290 LBS
Gross Weight 4950 LBS
Standard Accessories
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Overhead parallel dresser
Dust-suction coolant system
Permanent chuck
Work light
Toolbox with tools
