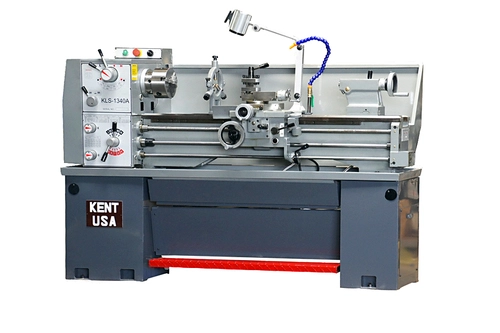

New KENT USA KLS-1340A | Engine Lathes

Machine Capacity Swing over bed 13” (330 mm)
Swing over cross slide 7-1/4” (185 mm)
Swing over gap 18-3/4” (476 mm)
Width of bed 7 3/8” (187 mm)
Distance between centers 40” (1000 mm)
Cross slide travel 6-1/2” (165 mm)
Top slide travel 3” (75 mm)
Main Spindle Spindle speeds 8 Speed
Spindle speed range 70-2000 RPM
Through hole diameter 1-1/2” (38 mm)
Spindle nose D1-4 camlock
Spindle bore taper MT #5
Threads Standard (Whit-worth) 32 (4-56) TPI
Metric pitch 32 (0.4-7) MM
Feeds Longitudinal feeds 0.0032”-0.1067” IN/REV
Cross feeds 0.00086”-0.0367” IN/REV
Leadscrew Leadscrew diameter 7/8” (22 mm)
Thread pitch 8 TPI
Tailstock Quill travel 3-5/8” (95 mm)
Quill diameter 1-1/2” (40 mm)
Quill bore taper MT #3
Power Main motor 2 HP (110V or 220V, 1-phase)
Coolant pump motor N/A
Dimension Overall dimension 76” x 29” x 47” (LxWxH)
Packing dimension 80” x 35” x 61” (LxWxH)
Weight Net weight 1100 LBS
Gross weight 1310 LBS
