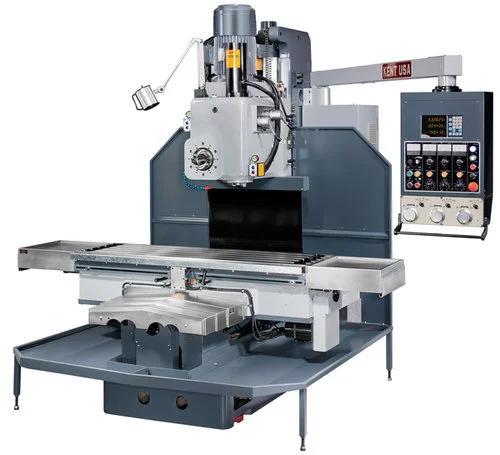

New KENT USA JY-VH550 | Vertical & Horizontal Mills

Description

Kent Combo H/V Mills offer both the capabilities of a Vertical Mill and a Horizontal Mill in one design. Changing the setup from one operation to the other is quick and simple. These mills are equipped with hard-chromed dovetail ways or hardened and ground box ways for superior wear resistance, and separate motors drive the vertical spindle and horizontal spindle.

Features

- 10 HP spindle motor infinitely variable speed, #50 taper spindle, 19.7” x 75” hardened and ground table top
- Saddle and base with hardened and ground square (box) ways
- Precision ACME screws in X, Y, & Z axes
- X, Y, & Z axes driven by AC motor
- Precision bored and ground milling head, with super precision ABEC-7 bearings
- Meehanite® casting, with built in coolant reservoir in machine base
- Coolant system and chip tray
- Centralized automatic lubrication, with metered check-valves
- Precise angular contact bearings spindle
- Precision manufactured from SCM21 alloy steel, heat treated and precision ground spindle
- Hardened and precision ground for quiet running gears
- High torque servo motor X-axis feed
- Choice of Fanuc or Mitsubishi CNC controller
- Hardened, precision ground, and Turcite-B coated sideways for maximum wear resistance
- Convertible into CNC controlled system
