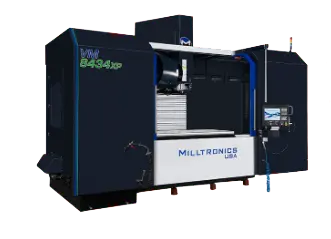

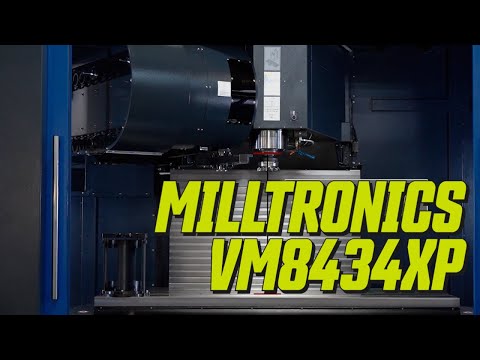

New MILLTRONICS VM8434XP | Vertical Machining Centers

Description

3-Axis Performance Vertical Machining Center

Our biggest XP Series machine at 84″ x 34″ x 30″, the VM8434XP has a 86″ x 34″ table and a 35 HP dual wound 8,000 RPM spindle that generates 365 ft-lbs of torque.

Standard Features
- Heavily ribbed one piece fine grain cast iron casting
- Fully enclosed machine guard with side doors
- 45 mm roller linear way technology
- Precision ground ballscrews supported at both ends
- Precision ground table surface
- Telescopic metal way covers
- 30 pocket double arm ATC
- ISO No. 50
- Automatic positive displacement lubrication system
- High torque AC digital servo drives
- High torque closed loop vector spindle drive system
- Dual work lights
- LCD hour meter
- Spindle taper blow-out and tool release
- Spare “M” function with CNC “wait” channel
- Programmable on/off flood coolant system
- Rigid tap
- Edit key lockout switch
- Spindle load meter
- Feedrate and spindle speed overrides
- Spindle air purge
- End of cycle light
- Chip conveyor and washdown chip removal system
- Remote handwheel
- Air gun
- Coolant wash down gun
- One Year Warranty
