New MILLTRONICS SL8-II | CNC Lathes
ConditionNew
New

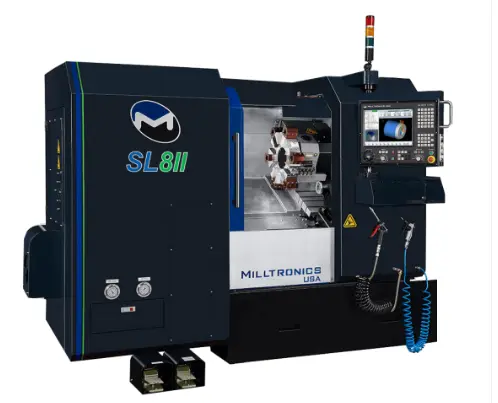

Slant-Bed Turning Center
The SL8-II has an 8″ 3-jaw chuck, a maximum turning diameter of 14″, maximum turning length of 20.7″ and a 3.2″ spindle bore. This popular size machine has a 22 HP spindle motor and a 4,000 RPM spindle. Standard with a 12-station auto turret. Options include chip conveyor, tailstock, and tool presetter.
Standard Features
- 3-jaw hydraulic chuck with foot switch
- 12 position auto turret with 1″ slots
- True slant bed with one-piece base casting
- Linear motion guideways with roller type bearings
- Full enclosure with sliding door
- Flood coolant
- Auto lubrication
- Part, wire frame & solid model graphics
- Constant Surface Speed (CSS)
- 120 GB solid-state hard drive
- 15″ LCD color touch screen display
- Spindle load meter
- LCD hour meter
- One-year warranty
Slant-Bed Turning Center
The SL8-II has an 8″ 3-jaw chuck, a maximum turning diameter of 14″, maximum turning length of 20.7″ and a 3.2″ spindle bore. This popular size machine has a 22 HP spindle motor and a 4,000 RPM spindle. Standard with a 12-station auto turret. Options include chip conveyor, tailstock, and tool presetter.
Standard Features
- 3-jaw hydraulic chuck with foot switch
- 12 position auto turret with 1″ slots
- True slant bed with one-piece base casting
- Linear motion guideways with roller type bearings
- Full enclosure with sliding door
- Flood coolant
- Auto lubrication
- Part, wire frame & solid model graphics
- Constant Surface Speed (CSS)
- 120 GB solid-state hard drive
- 15″ LCD color touch screen display
- Spindle load meter
- LCD hour meter
- One-year warranty
Imperial
| Swing | 21.7" |
| Machining Length | 21" |
| Chuck Size | 8" |
| Bar Capacity | 1.5" |
| Power | 22 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 14" |
| Tailstock | Yes |
| Dimensions | 74” H |
| Weight | 8,885 lbs |
