New MILLTRONICS SL10-II | CNC Lathes
ConditionNew
1 available
New

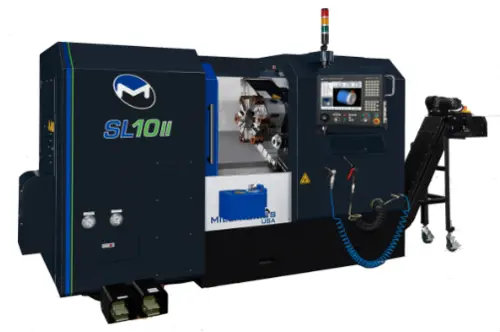

Step up to the SL10-II, featuring a 10″ 3-jaw chuck, 3.74″ spindle bore and maximum turning length of 29.9″. This model has a 30 HP spindle motor and 12 tools in the turret. Options include: chip conveyor, tailstock, parts catcher, and tool presetter.
The Milltronics SL Series of CNC lathes offer a great combination of features and performance at an attractive price. They are well built, reliable, and easy to use. The SL Series features robust, true slant bed castings, linear motion guide roller ways, direct coupled ballscrews, and the 9000 control.
Specifications
CAPACITY:
X axis travel 9.8” (250 mm)
Z axis travel 31.1” (790 mm)
Swing over bed (diam) 22.9” (582 mm)
Swing over cross slide (diam) 15.8” (402 mm)
Max. turning diameter 17.7” (450 mm)
Max. turning length 29.9” (760 mm)
SPINDLE:
Spindle nose A2-8
Draw tube inner diameter 3.18” (81 mm)
Spindle bore diameter 3.74” (95 mm)
Chuck size 10” (254 mm)
Spindle range 0-3000 RPM
AC spindle motor 29.5/20 HP (22/15.0 kW)
Spindle torque 260 ft-lbs. (352 Nm) at 600 RPM
TAILSTOCK:
Tailstock quill travel 4.7” (119 mm)
Tailstock quill diameter 3.54” (90 mm)
Tailstock quill taper MT5
AUTOMATIC TURRET:
Number of tools 12
Tool size 1” x 1” (25 x 25 mm)
Boring bar capacity 1.5” (40 mm)
Tool selection Bi-directional
Turret index time (1 position) 0.6 sec.
MOTION:
X, Z axis rapid traverse rate 1,181 IPM (30 m/min)
Maximum cutting feed rate 400 IPM (10.16 m/min)
X axis ball screw diameter 1.25” (32 mm)
Z axis ball screw diameter 1.57” (40 mm)
Position accuracy* ±0.0002” (±0.005 mm)
Repeatability* 0.0002” (0.005 mm)
Axis thrust force X, Z 3,125 lbs. (13.9 kN)
GENERAL:
Machine height 73.5” (1,868 mm)
Floor space required (W x D) 163.9” x 112.4“ (4,163 mm x 2,854 mm)
Machine weight 10,670 Lbs. (4,840 Kg)
Voltage required 208-240 Volts 3 Phase
Standard Features
• 10” 3-Jaw hydraulic chuck with foot switch
• 3.18” Draw tube I.D.
• 3,000 RPM spindle
• 12 position auto turret with 1” slots
• True slant bed with one piece base casting
• Linear motion guideways with roller type bearings
• Full enclosure with sliding door
• Flood coolant
• Auto lubrication
• Hydraulic tailstock with foot switch
• Lift-up chip conveyor
• Milltronics 9000-DGI CNC Control
• Part wire frame & solid model graphics
• Constant surface speed (CSS)
• 120 GB solid state hard drive
• 15” LCD color touch screen display
• Bi-Directional Turning Cycle (option)
• One-year warranty
Standard Equipment in Base Price
• Milltronics 9000-DGI CNC
• 15" color LCD touch screen display with solid model graphics
• 120 GB solid state hard drive, 4 GB RAM memory
• Two external and four internal USB ports, Ethernet connection
• Auto DXF file import
• User Definable Custom Macros
• Spindle load meter; Feedrate and Spindle speed overrides
• Edit key lock-out switch
• LCD hour meter
• Tri-color end of cycle warning light
• Spare "M" Function with CNC wait channel
• Console integrated manual pulse generator (MPG)
• Work light
• 3,000 RPM spindle
• A2-8 spindle nose
• 3.18” draw tube bore diameter
• 10” Hydraulic 3 jaw chuck with soft jaws and foot switch
• Hydraulic tail stock
• 29.5/20 HP (22/15.0 kW) spindle motor
• Cartridge type spindle design with high precision spindle bearings
• Linear way roller guide technology on all axes
• 1” square shank 12 station automatic turret
• Tool holder kit with 12 OD wedge clamps; 6 Boring Bar or drill holders; and 2 Axial/Facing work holders. Includes 8 ID sleeves (3/8, 1/2, 5/8, 3/4, 1.0, 1.25, MT2, MT3)
• Conveyor chip removal system
• Flood coolant system; Coolant gun and air gun
• Door interlock safety switch; metal way cover construction
• Brushless AC Servo motors directly driving double anchored oversized ball screws on all axes
• 1,181 IPM Rapid traverse rate
• Automatic metered way oil lubrication
• CSS and feed/rev with threading; rigid tapping and thread chasing cycles
• Instruction manual, parts list, electrical drawings, operator, and maintenance manuals
• One year warranty
