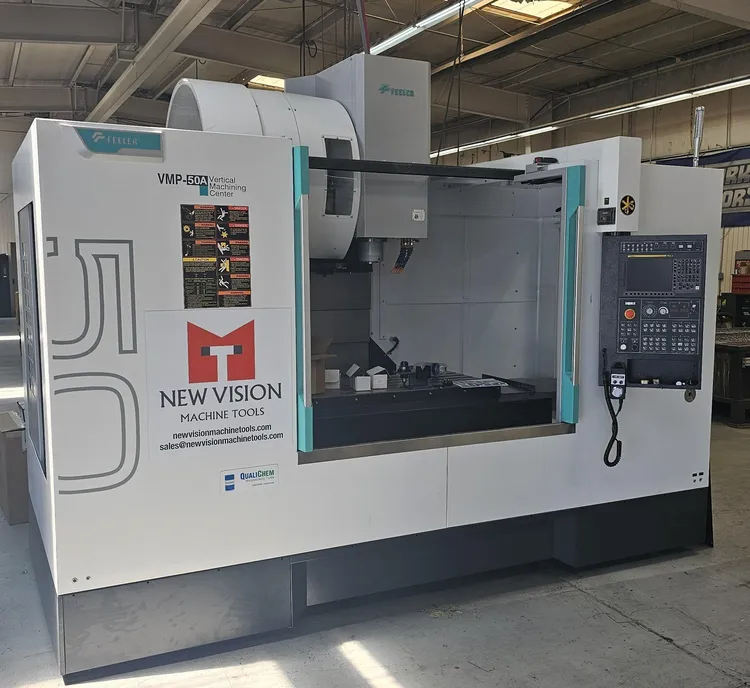

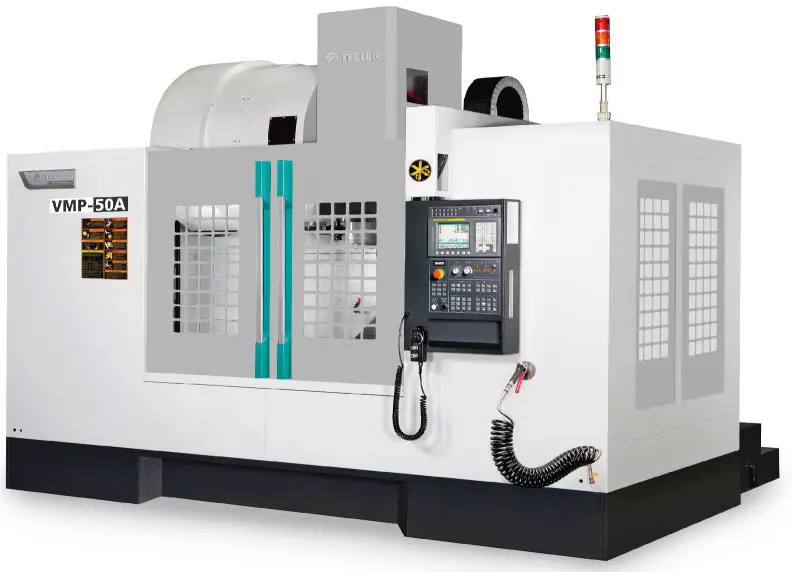

Used 2022 FEELER VMP-50(A) | Vertical Machining Centers

(253) 365-5802
mike@newvisionmachinetools.com
ConditionUsed
1 available

Overview

Type:
Vertical Machining Centers
Manufacturer:
FEELER
Model:
VMP-50(A)
Year:
2022
Status:
For Sale

Description

2022 FEELER VMP-50(A) Vertical Machining Center, used, features Fanuc 0i-MF controller, 10.4” LCD, CAT #40 spindle, 30-tool ATC. Specs: 1,300mm X, 610mm Y, 600mm Z, 10,000 RPM, 11 kW, 3-axis. Includes chip conveyor, coolant systems, and more.

X1,300 mm51.181"
Y610 mm24.016"
Z600 mm23.622"
Power11 kW14.8 hp
RPM10,000 RPM10,000 RPM
# ATC3030
TaperCAT #40CAT #40
Table-W23.6"599.44 mm
Table-L55.9"1,419.9 mm
# Axis33
ControlCNC (Fanuc Oi-MF CNC Control)CNC (Fanuc Oi-MF CNC Control)
Dimensions140" x 108" x 114" (LxWxH)140" x 108" x 114" (LxWxH)
Weight16,060 pounds16,060 pounds

• Fanuc 0i-MF controller
• 10.4” LCD monitor
• Manual Guide i
• Spindle
- CAT #40 (BIG PLUS)
- 10,000 rpm belt driven
- Powerful 25 HP (18.5 kW) S3-60%
• Table
- 55.9” (1,420mm) x 23.6” (600mm)
- 3,300lbs. (1,500kg) load capacity
• ATC 30 Tools
• X / Y Liner guide and Z axis box guide ways
• 435 PSI Coolant Through Spindle preparation with rotary unit.
• Oil Skimmer
• Dual Y-Axis Augers
• Coolant gun
• (8) Extra M-code
• 4th axis interface preparation
• Max. 200 Block Look-ahead
• AICC II, Smooth Tolerance Control, Jerk Control
• Auto power off
• Chip Conveyor
• 3 color tower signal light
• Fast 36m/mim (1,417 IPM) X, Y and 24m/mim (945 IPM) Z rapid traverse
