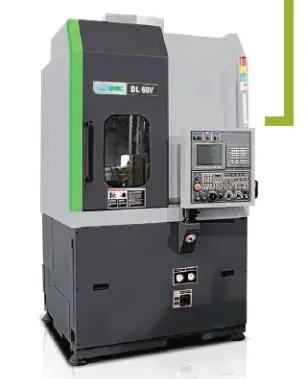

New FFG DMC DL 60V(L) | Vertical Turning Lathes (VTL)
ConditionNew
New
Brand new FFG DMC DL 60V(L) Vertical Turning Lathe, perfect for precise machining tasks. Enhance production efficiency with this advanced VTL designed for high performance and reliability. Ideal for various industrial applications.
MACHINE SPECIFICATIONS
CAPACITY
Maximum Swing (on the Bed) Φ 610mm (24.02”)
Cutting Diameter (Maximum) Φ 450mm (17.7”)
Maximum Cutting Length 450mm (17.7”)
Chuck Size 12”
SPINDLE
Spindle Nose A2-8 (ASA)
Bore Diameter Φ 90 mm (3.54”)
Main Spindle Motor 18.5/22 kw(25/30 hp)
Spindle Speed 3,000 rpm with 12” chuck
Spindle Torque (30 min. rating) 107kgf.m (774 lbs- ft)
SLIDE & CARRIAGE
"X" Axis Travel 260 mm (10.24”)
"Z" Axis Travel 480 mm (18.9”)
Rapid Traverse "X" 20m/min (787 ipm)
Rapid Traverse "Z" 20m/min (787 ipm)
Guide Ways (X / Z) Box way
Bed Structure Box shape mono casting
TURRET
Number of Tool Stations 12 Tools / 12 stations
Turret Indexing Speed (Full) 0.2(1.0) Seconds
Indexing Type Non-stop, Bi-directional
Tool Size (Turning and Facing) □25 mm (1”)– wedge clamp
Tool Size (Boring Bar Max. Diameter) Φ 50 mm (2”)
MACHINE SIZE
Floor Space Requirements (W x L) 2,780 mm (109.45”) x 1,500 mm (59.06”)
Machine Weight 6,200 kg (13,668 lbs)
Power Consumption 37 kVA
Voltage 220V±10%, 60 Hz, 3 phase
CNC
CNC Model Fanuc 0i-TF
Display Unit 10.4” LCD Monitor
• 10.4” LCD Monitor
• Machine Work Light
• Complete Coolant System: Tank capacity: 270 Liters (71.3 Gal), 0.4/1.1 kW (0.5/1.2 hp) Pump
• Chip and Coolant Splash Guarding (Full Coverage)
• 15 Inch Dia. Hydraulic Thru-hole Chuck Package:
- with one (1) set of soft jaws
• Hydraulic Unit: 2.2 kW Pump, 14 liter Tank, 40 kg/ cm2
• 12 Drum - 12 Position Servo Turret
• Lubrication System
• Chuck Foot Switch
• Front Door Interlock
• Hydraulic Pressure interlock from main hydraulic line
• Machine Arranged for 220V + 10%, 60Hz
• Foundation Kit (Plates only)
• One (1) set of Adjusting Tools
• Manuals: One (1) each (Programming, Operating, Part List, Electric circuit diagrams)
• Standard Tooling Package
- Boring Holder Φ50mm (2”) 5pc
- Face Holder □25mm (1”) 1pc
- U-Drill Holder Φ40mm (1 1/2”) 1pc
- Boring Bar Sleeve: Φ12mm (1/2”) 1pc
- Boring Bar Sleeve: Φ16mm (5/8”) 1pc
- Boring Bar Sleeve: Φ20mm (3/4”) 1pc
- Boring Bar Sleeve Φ25mm (1”) 1pc
- Boring Bar Sleeve Φ32mm (1 1/4”) 1pc
- Boring Bar Sleeve Φ40mm (1 1/2”) 1pc
