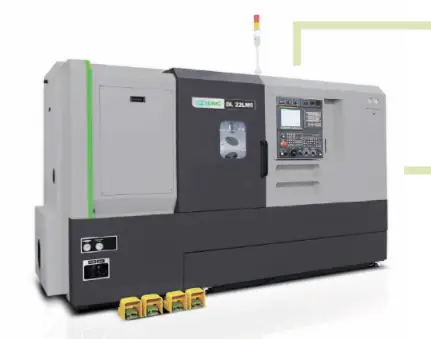

FFG DMC DL 22LMS (IN STOCK PROMO)

■ SPECIFICATIONS

CAPACITY:
Maximum Swing (on the Bed) Ø 550mm (Ø 21.6”)
Maximum Cutting Diameter Ø 280mm (Ø 11”)
Maximum Cutting Length 500mm (19.68”)
Draw Tube I.D. Ø 65mm (Ø 2.56”)
Chuck Size 8”

MAIN SPINDLE:
Spindle Nose A2-6 (ASA)
Bore Diameter Ø 76 mm (2.99”)
Main Spindle Motor 15/11KW (20/15 HP)
Spindle Speed 4,000 rpm
Spindle Torque (30 min. rating) 123 ft-lbs (18.4 kgf.m)

SUB SPINDLE
Spindle Nose A2-5 (ASA)
Bore Diameter Ø 40 mm (1.57”)
Main Spindle Motor 5.5 /7.5kW (7.4/10 hp)
Spindle Speed 6,000 rpm with 6” chuck

SLIDE & CARRIAGE
"X" Axis Travel 190mm (7.48”)
"Z" Axis Travel 550 mm (21.65”)
"B" Axis Travel 580 mm (22.83”)
Rapid Traverse "X" 24 m/min (944.88ipm)
Rapid Traverse "Z" 24 m/min (944.88ipm)
Rapid Traverse "B" 24 m/min (944.88ipm)
Guide Ways (X / Z / B) BOX Way
Bed Structure 45o Slant bed

BMT 55 TURRET
Max Number of Tool Stations 12 Tools
Turret Indexing Speed (Full) 0.15 (1.0) seconds
Indexing Type Non-stop, Bi-directional
Tool Size (Turning and Facing) □ 25 mm (1”) – Wedge clamp type
Tool Size (Boring Bar Max. Diameter) Ø 40 mm (1.5”)

MACHINE SIZE
Floor Space Requirements (L x W) 3,320 mm (130.7”) x 1,600 (62.99”)
Machine Height 2,050mm (80.71”)
Machine Weight 4,500 kg (9,921 lbs.)
Power Consumption 42 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF
Display Unit 8.4” LCD monitor
