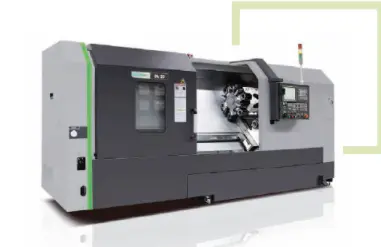

Discover precision with the new FFG DMC DL 30 CNC Lathe. Featuring a 610 mm swing, 1,080 mm machining length, 12" chuck size, and 18.5 kW power, it delivers up to 3,000 RPM. Ideal for tasks needing 400 mm turning diameter and 90 mm bar capacity.
Fanuc 0i-TF Plus controller, 10.4” LCD Monitor, 3,000 rpm spindle, Powerful 35HP (26 kW) spindle motor – S3 25%, High Torque Spindle - 637 lbf-ft (863 N.m), 12” Chuck, A2-8 Spindle Nose, Ø3.54” (Ø 90mm) Bar capacity, Ø15.75” (Ø 400mm) Max. turning diameter, 48.52” (1,080mm) Turning length, 12 Station Servo Turret, Box Guide Ways, Programmable Tail Stock, Programmable Quill, Tool size: □ 1”/Ø 2” (□25mm/Ø50mm), 3 color tower signal light, 787 IPM (20m/min) X, and 945 IPM (24m/min) Z rapid traverse, 45° slanted All-in-One Bed structure, Standard Tooling Package, Chip Conveyor (Hinged Belt, Side), Air Gun, Coolant Flushing Gun, Oil Skimmer (Belt type), Auto Tool Pre-setter (Pull down, Renishaw HPMA), (4) Extra M-Codes, Manual guide i, Fanuc Control 2 years Warranty
