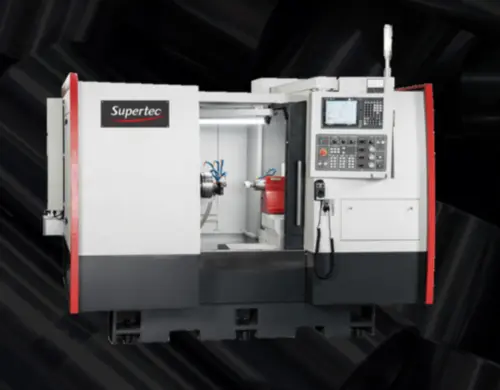

SUPERTEC EGM-350 CNC Multi-Spindle ID/OD Grinder

SUPERTEC EGM-350 CNC Multi-Spindle ID/OD Grinder

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
Internal Grinders
Manufacturer:
SUPERTEC
Model:
EGM-350 CNC
Condition:
Build To Order
Status:
For Sale

Description

EGM-350/450 CNC multi-spindle grinder incorporates three independent slides (X,Z,Y) with duel grinding spindles. The grinders design characteristics are ideal for keeping up with the growing demand for extremely high precision parts.
EGI series CNC Precision Single Spindle ID Grinder EGl-150CNC single spindle
ID grinder is the answer to our customers request for a dedicated ID grinder.
The small foot print easily lends itself to be fully automated in various ways.

Swing19.6"497.84 mm
Max Grinding Bore5.91"150.11 mm
Stroke7.87"199.9 mm
Travel-Long8.86"225.04 mm
Workhead Power1 hp0.7 kW
Wheel Power5 hp3.7 kW
Workhead Speed0 RPM0 RPM
DresserYesYes
ControlCNC (Mitsubishi M80)CNC (Mitsubishi M80)
Dimensions86.6 x 63 x 70.9 in86.6 x 63 x 70.9 in
Weight7054 lbs7054 lbs
