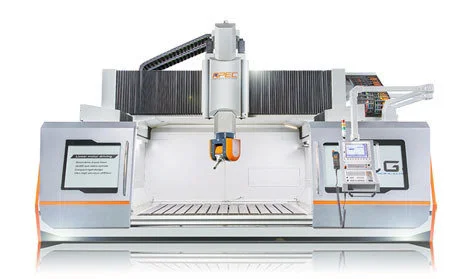

New APEC G20 DYNA | Gantry Machining Centers (incld. Bridge & Double Column)
ConditionNew
New
G Dyna
Two-axis head with direct drive motor
Spindle speed 24,000 rpm
U-frame structure
Ball screw in XYZ axis, rapid traverse 20 m/min
Specifications G20 Dyna
X-axis 2000/3000/4000/5000/6000+ mm
Y-axis 2000 mm
Z-axis 1000 mm
Rapid traverse X=20 Y=20 Z=20
X/Y/Z-axis acceleration 4
Spindle taper HSK 63A
Spindle speed 24000 rpm
Spindle power (S1/S6) 37/46 kW
Max. swivel/rotation speed B=30 C=30 rpm
Max. swivel/rotation torque (S1-100%) B=760 C=800 Nm
Clamping torque B=2100 C=3000 Nm
Swivel/rotation angle B=±105° C=±200° degree
