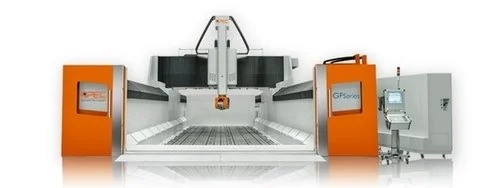

New APEC GF50 | Gantry Machining Centers (incld. Bridge & Double Column)

Description

Excellent heavy-duty machining capacity
High dynamic behavior
Ultra working volume
Max.working volume X=30m Y=5.0m Z=1.5m
Rapid traverse 40m/min
Max. acceleration=40m/s2
High speed spindle (HSK 63A 24,000rpm, HSK 100A 12,000rpm)
Two-axis head with large torque and DD motor drive
Customized design for special needs

Specifications GF50
X-axis 6,000 - 30,000 mm
Y-axis 5,000 mm
Z-axis 1,300 mm
Rrapid traverse XYZ=40 m/min
Max. acceleration XYZ=4 m/sec2
Spindle taper HSK 100A
Spindle speed 12000 rpm
Spindle power(S1-100%) 53 kW
2 Axis Head
Max. swivel/rotate speed B=60 C=25 rpm
Max. swivel/rotate torque B=1,628 C=2,120 Nm
Clamping torque B=4,680 C=6,000 Nm
Swivel/rotate angle B=±120° C=±200° degree
