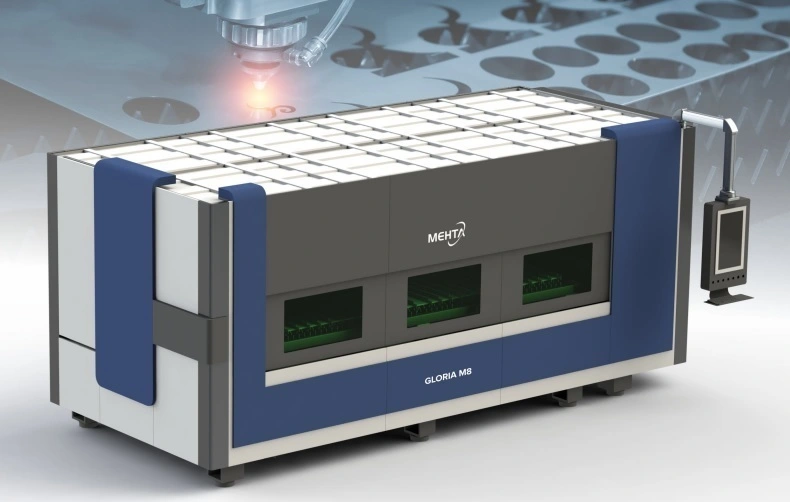

MEHTA M8 COMPACT PLATE LASER

AVAILABLE LASER POWER - 3000W TO 20000W
WORK AREAS AVAILABLE - 5'X10' (1550MMX3050MM)
WORK TABLE CUSTOMIZATION - CUSTOM SIZED TABLES AVAILABLE
LASER SOURCES RAYCUS / IPG
CUTTING HEAD 3000W AND BELOW - RAYTOOLS
CUTTING HEAD 4000W AND ABOVE - PRECITEC
CUTTING CAPACITY 3000W - 1/2'' STEEL, 5/16'' STAINLESS, 1/4'' ALUMINUM
CUTTING CAPACITY 6000W - 1'' STEEL, 1/2'' STAINLESS, 1/2'' ALUMINUM
CUTTING CAPACITY 12000W - 1-5/8'' STEEL, 1'' STAINLESS, 1'' ALUMINUM
MAX DISPLACEMENT SPEED - 1200 INCHES PER MINUTE
POSITION ACCURACY - 0.04MM
COOLING SYSTEM - MEHTA BRAND WATER CHILLER
SERVO DRIVE SYSTEM - PANASONIC
WORKING ELECTRICAL VOLTAGE - 380V 3 PH (TRANSFORMER INCLUDED)
CONTROLLER - CYPCUT
DUST COLLECTOR - DONALDSON LASER +
WARRANTY 3000W OR LESS - 24 MONTHS - PARTS AND SERVICE
WARRANTY 4000W OR MORE - 36 MONTHS PARTS - 24 MONTHS SERVICE

INSTALATION TIME - 4 DAYS (INCLUDED)
TRAINING TIME - 3 DAYS (INCLUDED)
SAFETY DEVICES - SAFETY DEVICES CONFORM TO OSHA/WSIB STANDARDS
REFLECTIVE MATERIAL MODULE - AVAILABLE AS EXTRA
