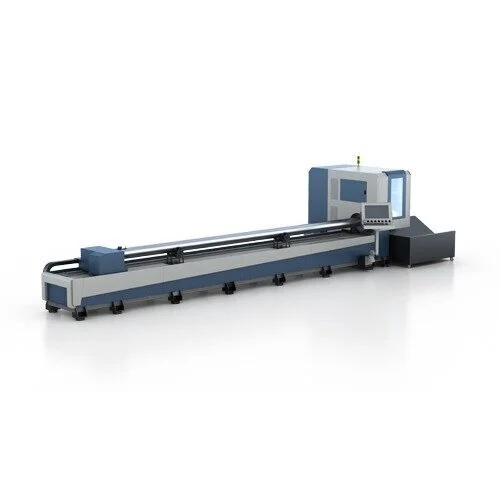

MEHTA GLORIA TX TUBE LASER

AVAILABLE LASER POWER - 3000W TO 12000W
TUBULAR MATERIALS PROCESSING - ROUND, SQUARE, L-ANGLE, CHANNEL, RECTANGLE, OVAL, OCTOGONAL AND MORE
WORK AREAS AVAILABLE - 10' LENGTH - 20' LENGTH - 30' LENGTH - CUSTOM LENGTH
CHUCK SIZES (SQUARE - ROUND) - 9'' CHUCK - 12'' CHUCK - 14'' CHUCK
LASER SOURCES - RAYCUS / IPG
CUTTING HEAD 3000W AND BELOW - RAYTOOLS
CUTTING HEAD 4000W AND ABOVE - PRECITEC
CUTTING CAPACITY 3000W - 1/2'' STEEL, 5/16'' STAINLESS, 1/4'' ALUMINUM (MAY VARY IN SMALLER TUBES)
CUTTING CAPACITY 6000W - 1'' STEEL, 1/2'' STAINLESS, 1/2'' ALUMINUM (MAY VARY IN SMALLER TUBES)
CUTTING CAPACITY 12000W - 1-5/8'' STEEL, 1'' STAINLESS, 1'' ALUMINUM (MAY VARY IN SMALLER TUBES)
MAX DISPLACEMENT SPEED - 600 INCHES PER MINUTE
POSITION ACCURACY - 0.04MM
COOLING SYSTEM - MEHTA BRAND WATER CHILLER
SERVO DRIVE SYSTEM - PANASONIC
WORKING ELECTRICAL VOLTAGE - 380V 3 PH (TRANSFORMER INCLUDED)
CONTROLLER - TUBEPRO - TUBEST LITE (TUBEST FULL AVAILABLE AS EXTRA)
DUST COLLECTOR - DONALDSON LASER +
WARRANTY 3000W OR LESS - 24 MONTHS - PARTS AND SERVICE
WARRANTY 4000W OR MORE - 36 MONTHS PARTS - 24 MONTHS SERVICE
DISCHARGE TABLE - INCLUDED
INSTALATION TIME - 4 DAYS (INCLUDED)
TRAINING TIME - 3 DAYS (INCLUDED)
SAFETY DEVICES - SAFETY DEVICES CONFORM TO OSHA/WSIB STANDARDS
