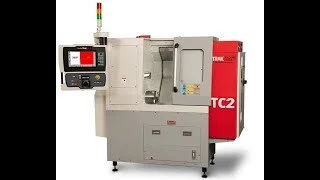

New TRAK TC2 | CNC Lathes

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
CNC Lathes
Manufacturer:
TRAK
Model:
TC2
Condition:
Build To Order
Status:
For Sale

Description

Hardware Features:
ProtoTRAK RLX CNC
2-Axis CNC and DRO
15.6″ LCD screen
4 USB 2.0 ports
Built-in LED status light
8-station turret
Coolant pump
Ethernet port

Software Features:
Clear, uncluttered interface
Prompted data inputs
Plain language - no codes
Soft keys change with context
Windows® operating system
Inch/mm selectable
G-Code run
Canned cycles

Swing12"304.8 mm
Machining Length11"279.4 mm
# Axis22
Chuck Size8"203.2 mm
Bar Capacity1.25"31.75 mm
Power7.5 hp5.6 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia8"203.2 mm
TailstockNoNo
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (ProtoTRAK RMX)CNC (ProtoTRAK RMX)
Dimensions99 in x 60 in x 68 in99 in x 60 in x 68 in
Weight4500 lbs4500 lbs

Machine Specifications
Overall Machine Dimensions
Dimensions (LxWxH)
80.4 x 36.96 x 75.5”
Max. Swing over bed
12”
Max. Turned diameter / Length
8” / 11”
Machine Weight
3370 lbs
Machine Shipping Weight
3483 lbs
Electrical
208V, 3P, 60 Hz
Travel
X Axis – direct drive with brake
7.5”
Z Axis – direct drive
11.40”
Spindle
Spindle nose
A2-5
Spindle power
7.5 HP
Spindle thru bore
2.40”
Bar capacity
2.05”
Turret
No. of tool station
8
Tool max size
3/4 in
Tool index
Clamping method
Servo motor
Pneumatic
Air Requirements
Pressure
90 psi
