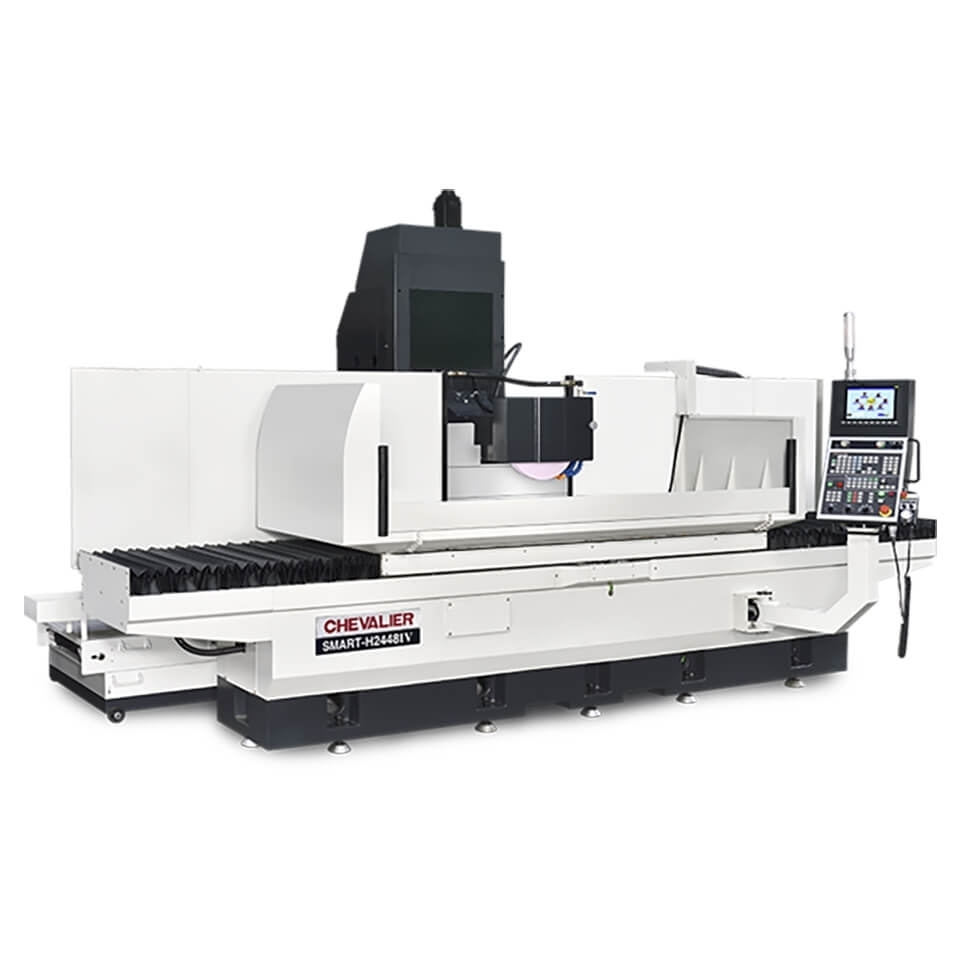

New CHEVALIER SMART-H/B2048 | Profile Grinders
ConditionNew
New
High precision cartridge type spindle equipped with four pieces of Class 7 (P4) angular contact ball bearings suitable for heavy duty grinding
Hand-scraped, Turcite-B Coated cross-feed guideways between base and saddle have double "V" design; provides support for full table travel and prevents table overhangs.
Automatic dressing with compensation during grinding cycle
Hand-scraped and Turcite-B coated longitudinal ways between table and saddle are double "V" design, ideal for delicate side grinding operations.
Data transfer is simplified by using a USB data port or Ethernet connection.
Control SMART iControl - -
Capacity Grinding length 47.2” 1,200 mm
Grinding width 19.7” 500 mm
Distance table to centerline of wheel 28.7" 730 mm
Max. table load 2,755 lbs. 1,250 kg
Table Table size 19.7” x 47.2” 50 x 1,200 mm
Table speed (variable) H:16~98.4 fpm
B: 0~65.6 fpm H: 5~30 m/min
B: 0~20 m/min
Max. table travel 51.2” 1,300 mm
Transverse movement (Z) Max. travel 22.0” 560 mm
Feed speed 0~10 fpm 0~3,000 mm/min
Spindle Spindle speed (variable) 500~1,800 rpm -
Spindle motor 15 HP 11 kW
Wheel dimension OD x Width x Bore Ø14” x 2” x Ø5” Ø355 x 50 x Ø127 mm
Dimension/Weight Floor space (W x D x H) H: 190.9 “ x 119.7” x 86.6”
B: 173.2” x 119.7” x 86.6” H: 4,850 x 3,040 x 2,200 mm
B: 4,400 x 3,040 x 2,200 mm
Net weight 14,100 lbs. 6,400 kg
