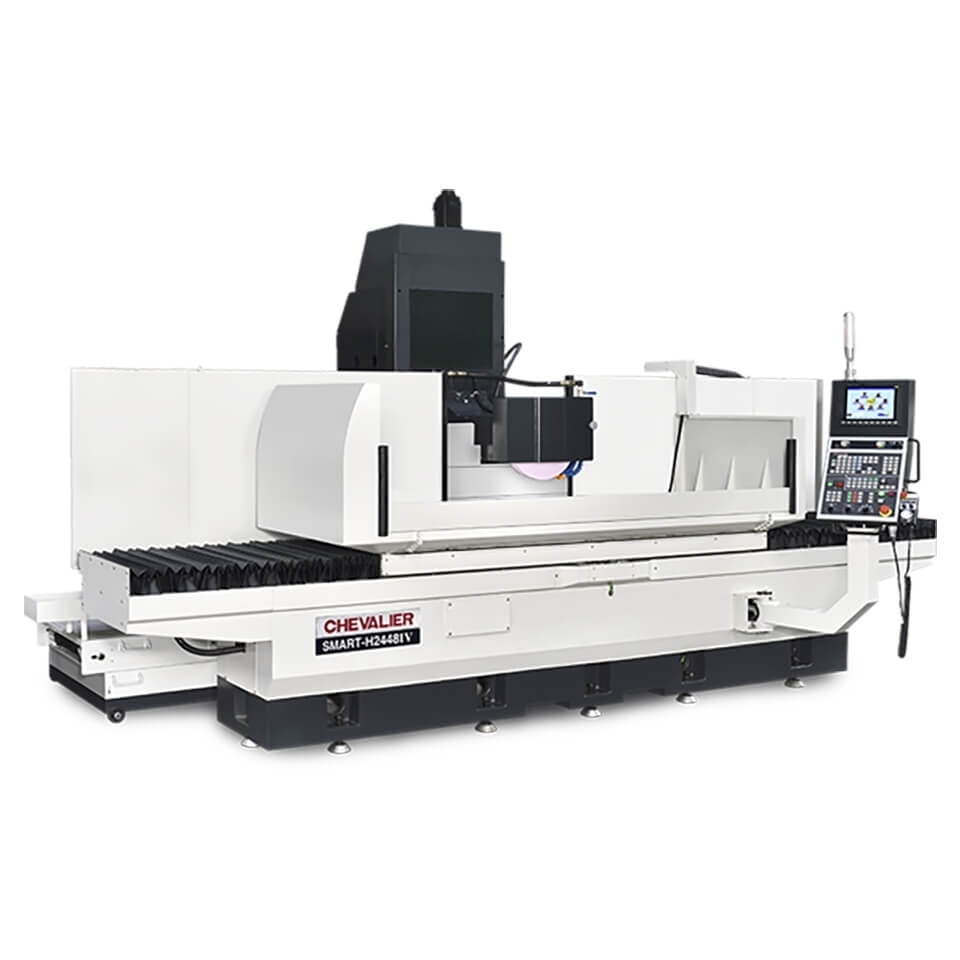

New CHEVALIER SMART-H/B2464IV | Profile Grinders
ConditionNew
New
High precision cartridge type spindle equipped with four pieces of Class 7 (P4) angular contact ball bearings suitable for heavy duty grinding
Hand-scraped, Turcite-B Coated cross-feed guideways between base and saddle have double "V" design; provides support for full table travel and prevents table overhangs.
Automatic dressing with compensation during grinding cycle
Hand-scraped and Turcite-B coated longitudinal ways between table and saddle are double "V" design, ideal for delicate side grinding operations.
Data transfer is simplified by using a USB data port or Ethernet connection.
Control SMART iControl - -
Capacity Grinding length 63.0”
Grinding width 23.6"
Distance table to centerline of wheel 33.5"
Max. table load 3,855 Lbs.
Table Table size 23.6” 63.0”
Table speed (variable) H:16~98.4 fpm
B: 0~65.6 fpm
Max. table travel 66.9”
Transverse movement (Z) Max. travel 27.0”
Feed speed 0~16.4 fpm
Spindle Spindle speed (variable) 500~2,200 rpm
Spindle motor 15 HP
Wheel dimension OD x Width x Bore Ø16” x 2” x Ø5”
Dimension/Weight Floor space (W x D x H) H/B:242.7” x 130.7” x 112.2”
Net weight 20,900 lbs.
