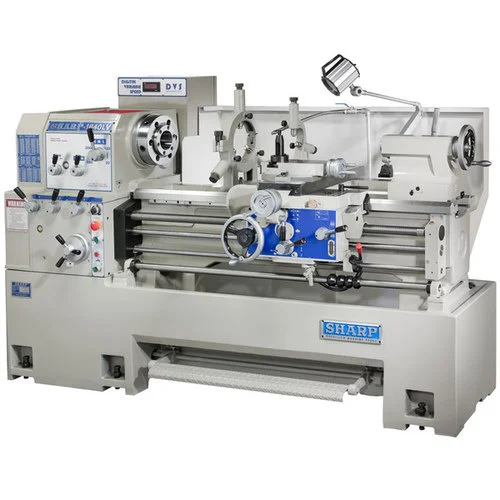

New SHARP 1860LV | Precision Lathes
ConditionNew
New
This model is designed with 3.18” spindle hole which is unique for 18” swing lathes. Due to its one piece casting machine base, it can support heavier cutting on large diameter materials. The large through hole allows most 3” diameter oil pipes to be machined. The variable speed spindle allows easy change of speeds.
- 18″ x 60″, geared head, D1-8 camlock, 3.18″ bore, 7.5 HP, vari speed 20-2,000 rpm (Hi, Low)
- Direct selection for inch/metric threads
- One piece Meehanite casting bed
• Face Plate (16”)
• American Tool Post
• Follow Rest (0.59” – 3.15”)
• Steady Rest w/ bronze tip (.4”- 6”)
• Coolant System
• Full Length Splash Guard
• Halogen Work Light
• Micrometer Carriage Stop
• Longitudinal Carriage Stops
• Machine is set only for 220 V. Needs an optional transformer for 440V applications.
• Tail Stock & Tool Kit includes:
Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, 2 sets of dead centers, 2 sets of dead centers, Pin for Indicator, Can of Paint
