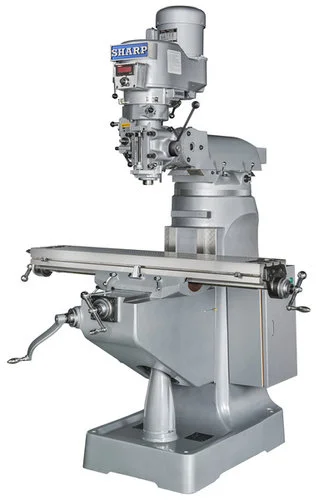

This model is equipped with Digital Variable Speed for easy change of spindle speeds.
The model has many unique features compared with most of the similar machines on the market. The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed. Tapered gibs installed on the ways allows easy adjustment for long term usage. The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle. The bottom of the saddle, instead of the top of the knee ways, which rides on the knee is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
- 9 x 49 ins table, 12 x 36.6 in. travel
- Digital Vari speed (DVS), speed change by turning a knob, with digital display of spindle speed
- R-8 spindle, 3 hp , speed (60-4,500 rpm)
- Spindle runout of no more than 0.0002 ins TIR
- Hard chromed ways provide long wear resistance
- Head tilt side to side, up and down
- One shot lubrication with back flow valve
- Tapered gibs for adjustment
- Dual clamps on knee and saddle that locks the knee and table evenly to the column and saddle to avoid skewing. Handles on the clamp are adjustable to 12 different positions.
Specs
Capacity Inch Metric
Table Size 9 x 49 in. 230 x 1244 mm
T-slots (No., Size, Pitch) 3, 5/8, 2.5 in. 3, 16, 63.5 mm
Table Travel : X Longitudinal 36.6 in. 929 mm
Table travel : Y Cross 12 in. 304 mm
Quill travel: Z Vertical 5 in. 127 mm
Knee travel : Vertical 16 in. 406 mm
Ram Travel 12 in. 304.8 mm
Spindle Center to Column 6.75 - 18.5 in.
171 - 470 mm
Spindle Nose to Table Top 2.125 - 18 in. 3.1 - 457 mm
Head, Spindle Inch Metric
Spindle Nose Taper R-8 R-8
Spindle Variable Speed Range 65-4500 rpm 65-4500 rpm
Spindle Motor (220V/440V) 3 HP 2.25 KW
Quill Feed (Inch/Rev)(3 speeds)
.0015, .003, .006 in. .038, .076, .152 mm
Quill Diameter 3.375 in. 85.7 mm
Head Swivel Angle 360°
Head Tilt Angle (L/R) 45°
Head Tilt Angle (Up/Down) 45°
General Inch Metric
Floor Area (W x D x H) 7 x 6.5 x 6.75 ft. 2.1 x 2 x 2 M
Approximate Weight 2,100 lbs. 952 Kg.
Power Consumption (220V) 3 KVA/8 amps
Power Consumption (440V) 3 KVA/4 amps
Standard Accessories
One Shot Lube System
Hard-Chromed Ways
Front and Rear Rubber Way Covers
Tool box with tools
Wired 220V or 440V.
