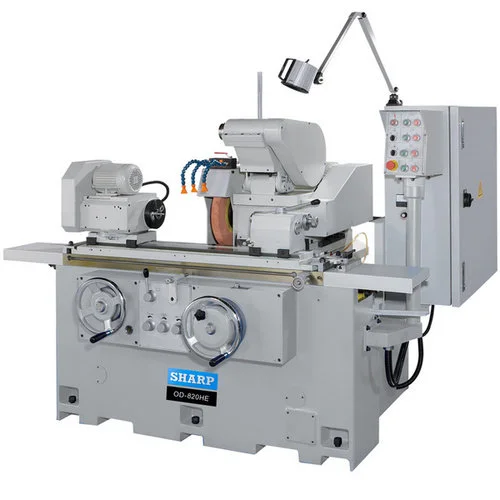

New SHARP OD 820HE | Universal Cylindrical Grinders
ConditionNew
New
This model with manual wheel head infeed can grind work piece of up to 8” diameter and 20” length. Table feed is hydraulic.
- 8″ max diameter, 20″ length
- 3 HP motor
- Auto table feed
- 14″ x 1.5″ x 5″ Wheel
- Manual wheel head infeed
- Work head spindle runout 0.000050″ TIR
- Spindle, wheel head & work head have variable speed drive
- Table can swivel for taper grinding
This model with manual wheel head infeed can grind work piece of up to 8” diameter and 20” length. Table feed is hydraulic.
- 8″ max diameter, 20″ length
- 3 HP motor
- Auto table feed
- 14″ x 1.5″ x 5″ Wheel
- Manual wheel head infeed
- Work head spindle runout 0.000050″ TIR
- Spindle, wheel head & work head have variable speed drive
- Table can swivel for taper grinding
Imperial
| Swing | 8" |
| Centers | 20" |
| Power | 3 hp |
| Workhead Power | 3 hp |
| Workhead Speed | 350 RPM |
| Grinding Wheel Dia. | 14" |
| Max Weight Between Centers | 176 lb |
| Weight | 4,070 lbs. |
