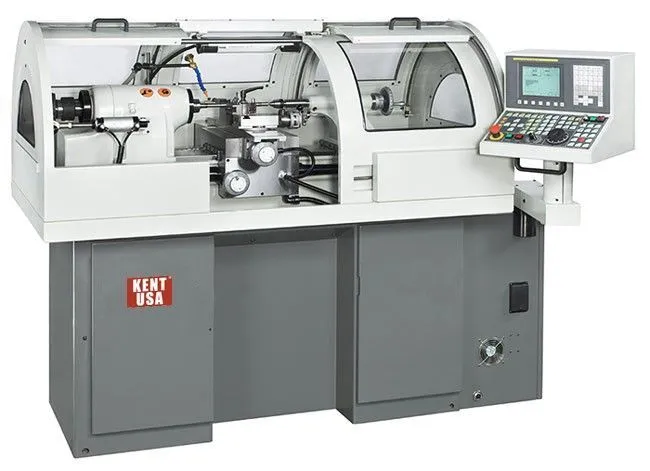

New KENT USA CT-1118 | Toolroom Conversational CNC Lathes

Description

Guaranteed Circular Accuracy to 50 millionths of an inch
Fanuc 0i-Mate TD Control Standard (Opt. Fagor 8055i CNC Control)
Powerful 3 HP motor (5HP-Optional) with Yaskawa current vector inverter drive for improved torque response at low end.
Spindle mounted on high precision preloaded angular contact ball bearings
Precision ballscrew on X, Z-axes
Protection guard on Z-axis ballscrew
X, Z-axes feeds driven by AC Servo Motor
X, Z-axes ballscrews directly coupled to AC Servo Motor, minimizing backlash
Solid one-piece enclosed headstock has high precision preloaded ball bearing spindle with 5C collet capacity
Solid full bearing tailstock that supports any load to the preloaded ball bearing spindle headstock
STEP CHUCKS – exceptionally useful for accurately holding work up to 6″ in diameter. Castings, moldings, stampings, and machined parts can be held rigidly and accurately.
STEP CHUCKS AND CLOSERS – carried in stock in 2″, 3″, 4″, 5″ and 6″ rated sizes. All step chucks are supplied with pinholes in place for precision machining.
CHUCK CLOSERS – fit directly to the machine spindle. A taper corresponding to that on the periphery of the step chuck places the closing pressure over the stepped area of the chuck, resulting in greater gripping power and accuracy.
Fast Lever Collet Chucking
Power Collet Closer (Air-Operated Automatic Chucking)
Optional Gang Tooling
Wide variety of accessories to increase versatility
