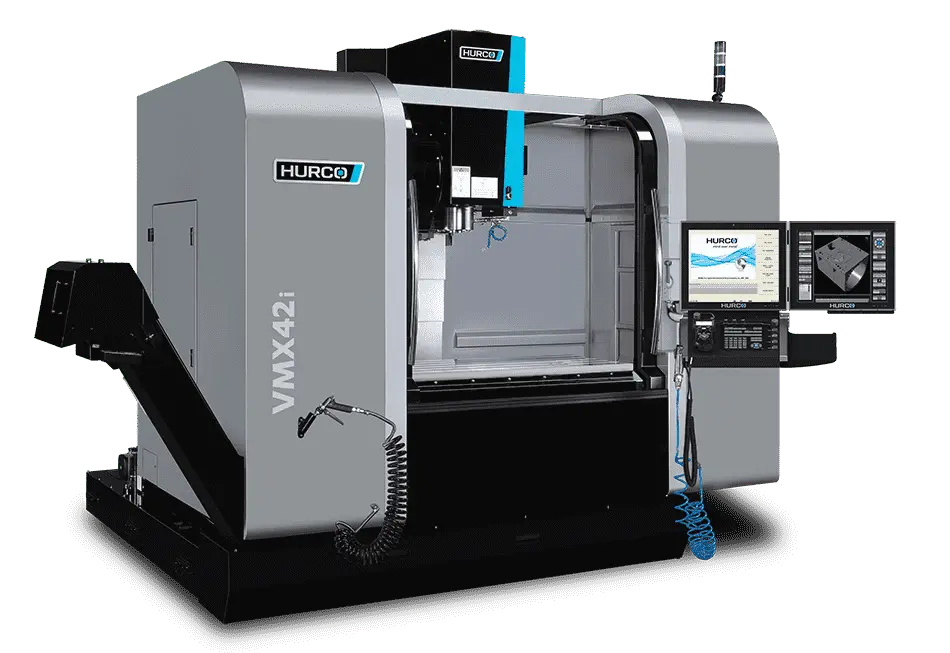

New HURCO VMX42I | Vertical Machining Centers

Description

VMX42i Machine Specifications
Travels & Capacity
X, Y, Z Axis Travel 42 x 24 x 24 in (1,067 x 610 x 610 mm)
T-Slot Size 5 x .71 in (5 x 18 mm)
Max. Weight on Table 3,850 lb (1,750 kg)
Table Size 50 x 24 in (1,270 x 610 mm)
Spindle Nose to Table 6.0 in (152 mm)
Spindle
Max. Spindle Speed 10,000 rpm
Spindle Power (peak - 1 min) 24 hp (18 kW)
Spindle Torque (peak - 1 min) 175 ft. lbs @ 720 rpm (237 Nm @ 720 rpm)
Tool Changer
Tool Type CAT 40 / Big Plus® (CAT or BT 40)
Number Of Tools 40
Max Tool Diameter 3.1 in (80 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb. (7 kg)
Feedrates
Rapid Traverse X,Y,Z Axis 1,181, 1,181, 787 in/min (30, 30, 20 m/min)
Max Programmable Feedrate 787 in/min (20 m/min)
Size
Max. Operating Floor Space 152.1 x 146.4 in (3,864 x 3,719 mm)
Machine Height 114.8 in (2,917 mm)
Machine Weight 11,596 lb (6,450 kg)
