New HURCO VM20I | Vertical Machining Centers
ConditionNew
New
Small Footprint. Large Work Cube. Big Value.
The VM series of 3-axis CNC machining centers features a small footprint with a large work cube. No other CNC mill packs as much productivity into such an efficiently designed package. The VM machining centers are absolutely the best value on the market for small CNC mills.

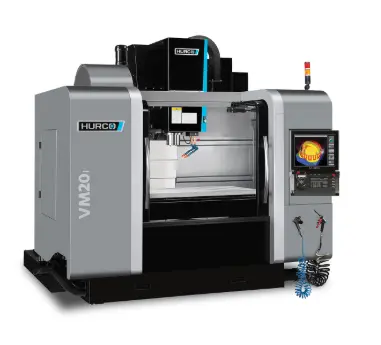

HURCO VM20I Vertical Machining Center. Features include a 40"x20"x20" XYZ travel, 20 hp, 12,000 RPM, and 20-tool ATC. Equipped with CAT 40 / Big Plus® taper, the 46"x20" table supports versatile 3-axis machining.
- One-piece, solid, cast-iron machine base
- One of the heaviest machine weights in its class
- BIG-PLUS® dual-contact spindle system / CAT 40 tooling (standard, not an option)
- Robust control specifications (standard, not an option) – 4GB RAM Memory, 10,000 block lookahead, - - - 128GB Solid State Hard Drive, 2.7GHz Dual Core Processor

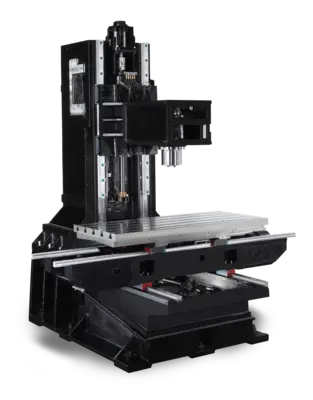

- Larger, heavy-duty linear rails on all three axes:- The rails are mounted and wedge-locked to a machined shoulder for increased rigidity and reduced vibration, just like all other Hurco machining centers.- The Y-axis rails are strategically spaced for increased strength and rigidity
- Wider machine tables extend beyond the X-axis travels to provide manufacturing flexibility that promotes high-mix manufacturing. » Best-In-Class Yaskawa Sigma V Drives
- LED lighting shines brighter and saves energy
- Ergonomically-designed control console with 19" LCD touch-screen
- WinMax® Mill Conversational and Industry Standard NC programming
- Patented Motion Control System (UltiMotion®) is standard, not an option.
