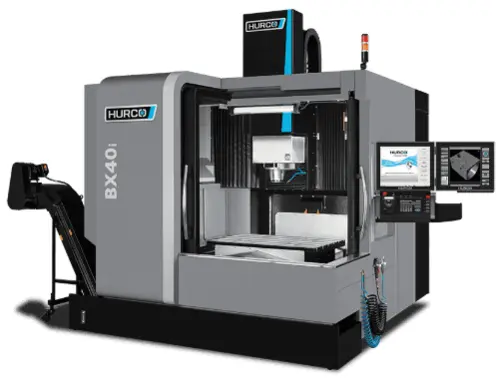

New HURCO BX40I | Vertical Machining Centers

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
Vertical Machining Centers
Manufacturer:
HURCO
Model:
BX40I
Condition:
Build To Order
Status:
For Sale

Description

The stability of the double-column, the ladder design of the Z-axis, and the overall weight of the machine (over 20,000 lbs.) provide exceptional accuracy and outstanding surface finish capabilities. Equipped with an 18,000 rpm spindle, the BX40i is designed for high speeds and tight tolerances.

X40.2"1,021.1 mm
Y27.6"701.04 mm
Z19.7"500.38 mm
Power47 hp35 kW
RPM18,000 RPM18,000 RPM
# ATC3030
TaperHSK 63HSK 63
Table-W35.4"899.16 mm
Table-L16.1"408.94 mm
# Axis33
Dimensions124'' H124'' H
Weight20062 lbs20062 lbs
