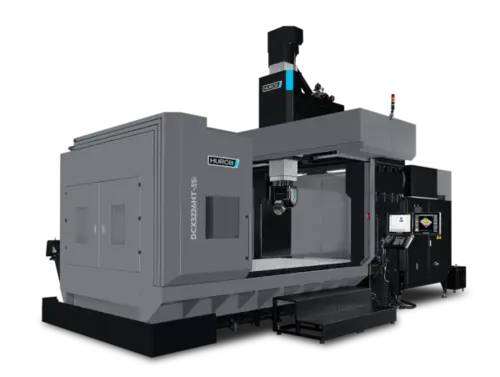

New HURCO DCX3226HT-5SI | Gantry Machining Centers (incld. Bridge & Double Column)

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
HURCO
Model:
DCX3226HT-5SI
Condition:
Build To Order
Status:
For Sale

Description

The DCX Series of CNC machining centers was created due to customer requests—customers who already knew the value of Hurco and needed larger machines for aerospace and energy parts. Our 2-meter and 3-meter VMCs are the biggest machine tools available with the powerful Hurco control.

X126"3,200.4 mm
Y102"2,590.8 mm
Z36.2"919.48 mm
Power107 hp79.8 kW
RPM6,000 RPM6,000 RPM
# ATC4040
TaperCAT, DIN 50 (CAT/BT 50)CAT, DIN 50 (CAT/BT 50)
Table-W82.7"2,100.6 mm
Table-L118.1"2,999.7 mm
Dimensions186"H186"H
Weight81439 lbs81439 lbs
