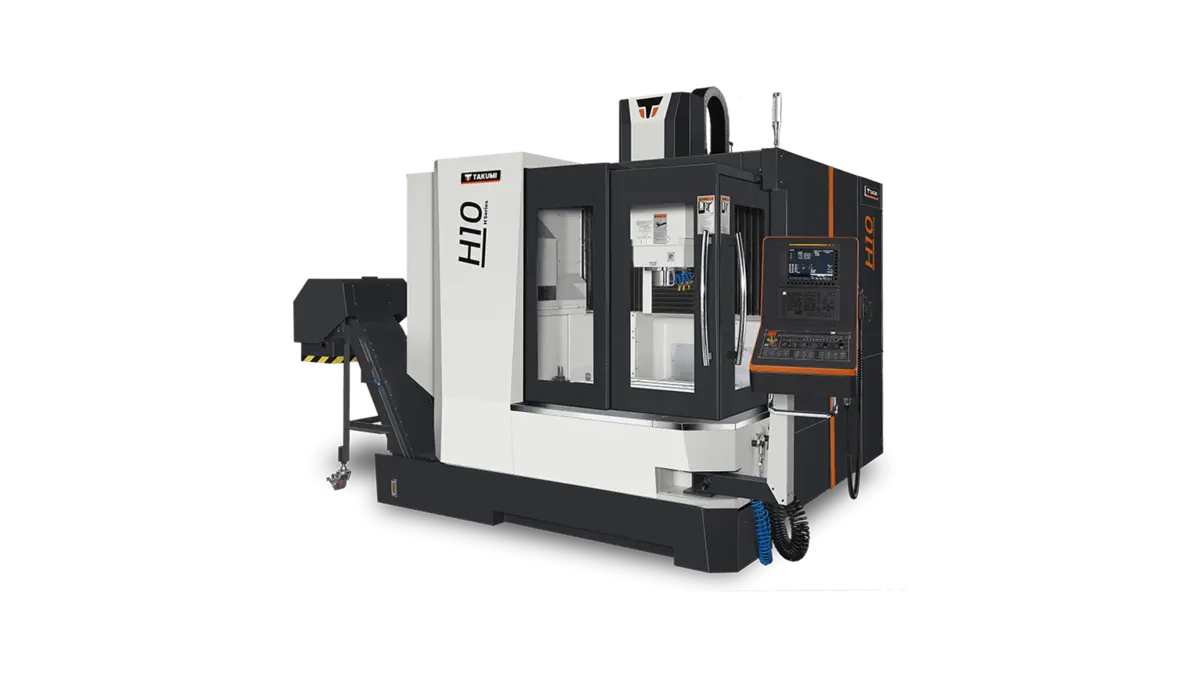

TAKUMI H10 3-Axis Bridge Mill

Description

DIE/MOLD & AEROSPACE INDUSTRIES

The Takumi H Series bridge mills — or double-column machining centers — are designed to be dynamic and accurate as demonstrated in both surface finish, quality, and consistent precision.

Unrivaled Performance + Accuracy

• Designed for parts that require outstanding speed and accuracy, and unparalleled surface finish.
• H-Series machines offer an extremely rigid and thermally stable double-column design.
• These 3-axis models feature high-speed, inline spindles with up to 15000 rpm.
• World-class performance for die/mold, aerospace, and other high-speed applications.
• Close proximity of spindle to bridge casting reduces overhang.
• Ladder design of bridge provides greater support for the head casting.
• Swiveling control panel optimizes floor space utilization.
• Extra wide door openings facilitate convenient loading and unloading.
• Large windows provide optimal visibility.
• Robust, precision-machined castings.
• Hand-scraped contact areas.
• Linear scales ensure repeatability and accuracy.
• Roller-type rails on all axes add rigidity.
• Integrated washdown and chip management system.
• Direct-coupled ballscrews increase accuracy.
• Absolute encoders ensure fast startup.
• BIG-PLUS® spindles increase rigidity and reduce tool deflection.
• Fanuc© 0i-MF Plus Control.
