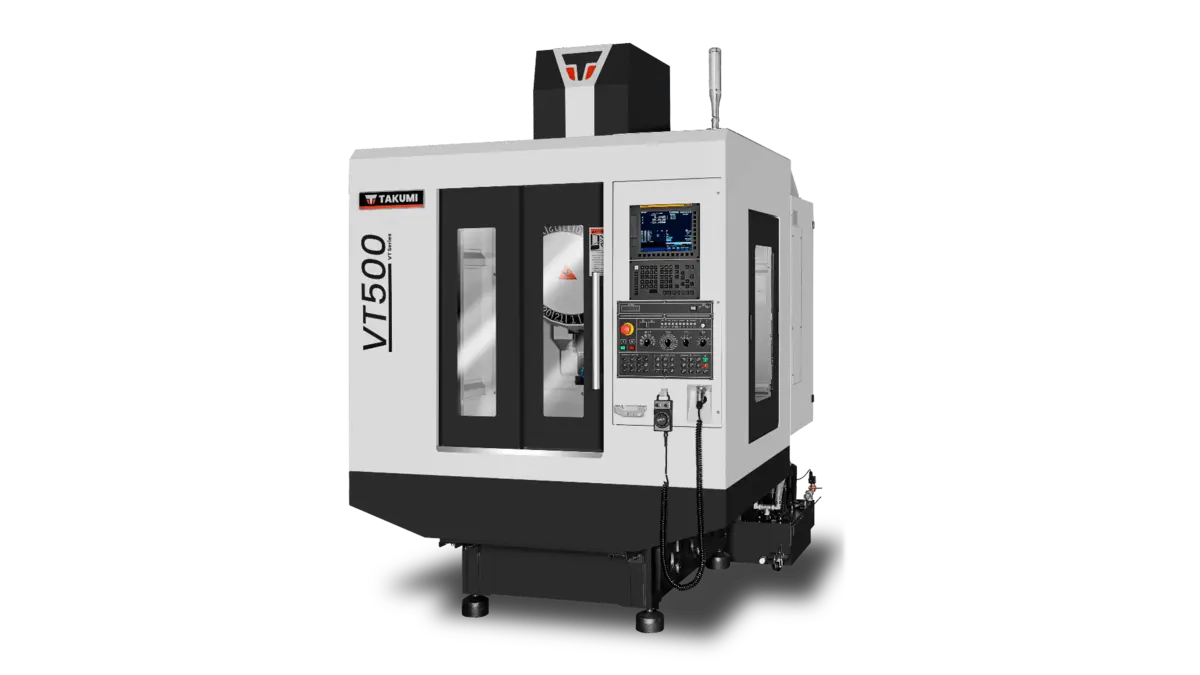

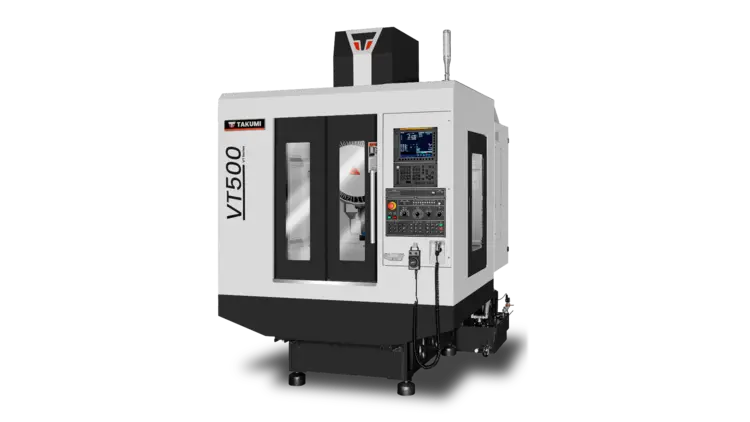

New TAKUMI VT500 | Vertical Machining Center

Description

• Fanuc© 0i-MF Plus Control.
• 3-axis, roller-type linear ways.
• Small footprint.
• High-rigidity structural design.
• Designed for high-speed and high-accuracy machining, the linear guideways are of high-precision grade.
• Main mechanical structures, such as base, column, saddle, etc., are made of cast iron.
• To ensure accuracy and repeatability that lasts over time, the VT Series uses a box-shaped design with grooves, which increases rigidity, in addition to optimally spacing the blocks on the linear guideways for the headstock. To eliminate intrinsic stress, the casting iron is heat treated.
• The direct-drive couplings for the 3 axes between the ballscrew and motor enhance the rigidity of movement and the accuracy of positioning.
• Centralized automatic lubrication injection system to 3-axis ballscrews and linear guideways.
• The enlarged and widened door makes it easier to load and unload workpieces.
• Due to the stable and straightforward structure of the mechanical tool-changing system, non-machining time is reduced, and operational efficiency is increased.
