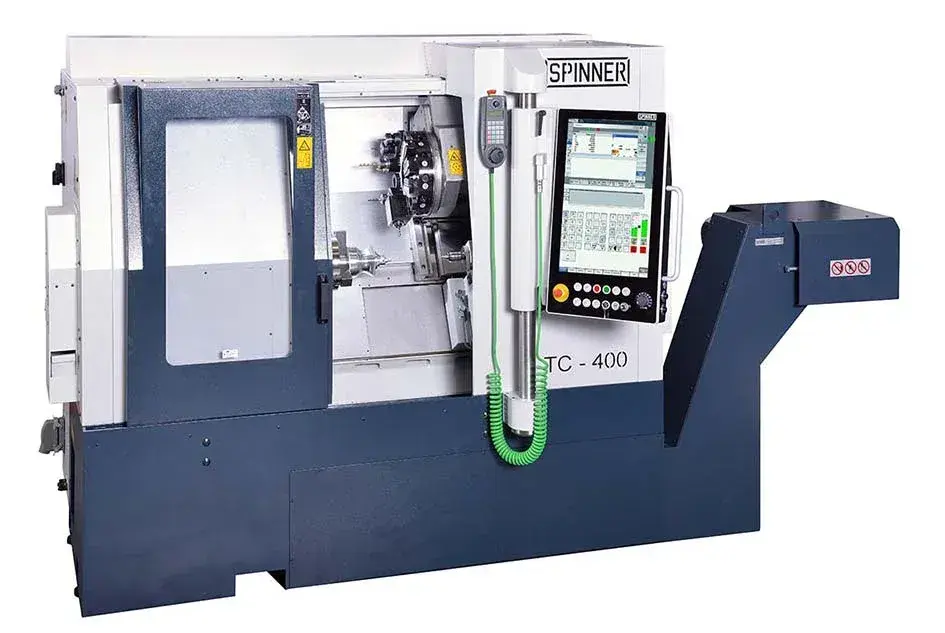

New SPINNER TC 400-52 | CNC Lathes

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
CNC Lathes
Manufacturer:
SPINNER
Model:
TC 400-52
Condition:
Build To Order
Status:
For Sale

Description

Precision box way CNC lathe that is capable of hard turning. If you are looking for a workhorse mid-sized CNC lathe with a compact footprint the TC400 is a great choice.

Modern and dynamic built-in motor spindle with water cooling

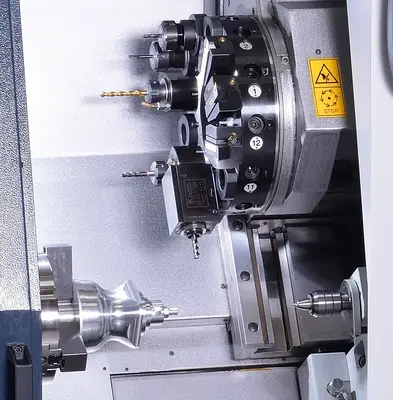

Dynamic servo-turret with adjustable tool change speed via feed override
Optional live tooling provides more flexibility in the turning applications

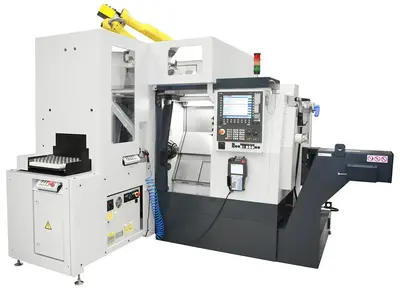

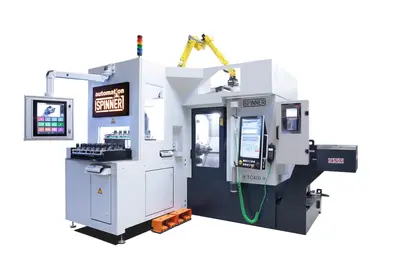

Automation ready with bar feeder interface and parts catcher options

Swing400 mm15.748"
Machining Length500 mm19.685"
# Axis22
Chuck Size210 mm8.2677"
Bar Capacity52 mm2.0472"
Power19 kW25.5 hp
Max RPM5,000 RPM5,000 RPM
Turning Dia280 mm11.024"
TailstockYesYes
Live ToolingYesYes
ControlCNC (FANUC 32IMB)CNC (FANUC 32IMB)
Dimensions2195 x 1350 x 1865 mm2195 x 1350 x 1865 mm
Weight3000 Kg3000 Kg
