New SPINNER TC 600-65 | CNC Lathes

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
CNC Lathes
Manufacturer:
SPINNER
Model:
TC 600-65
Condition:
Build To Order
Status:
For Sale

Description

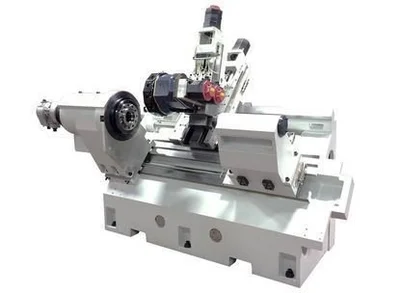

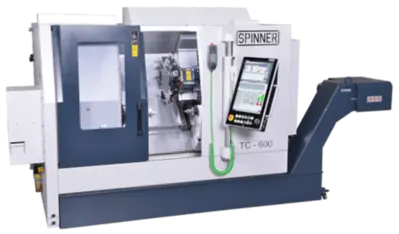

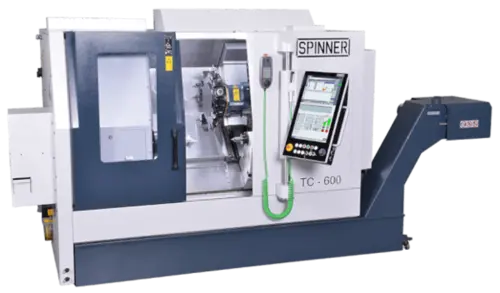

Precision box way CNC lathe that is capable of hard turning. If you are looking for a workhorse mid-sized CNC lathe with Y-axis, live tooling, sub spindle and a compact footprint the TC600 is a great choice.

Modern and dynamic built-in motor spindle with water cooling

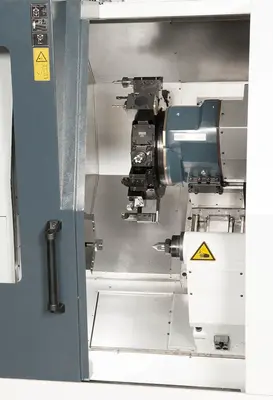

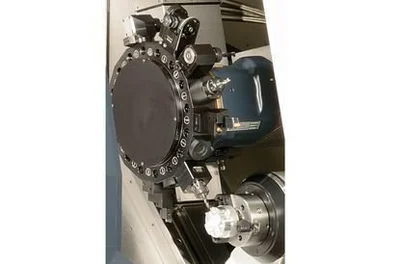

Dynamic servo-turret with adjustable tool change speed via feed override
Optional Y-axis, live tooling, and sub spindle provides ultimate flexibility

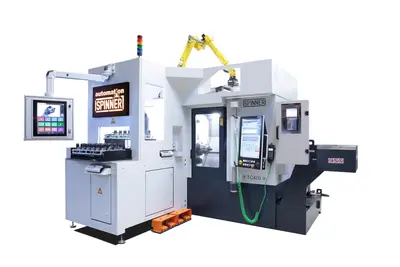

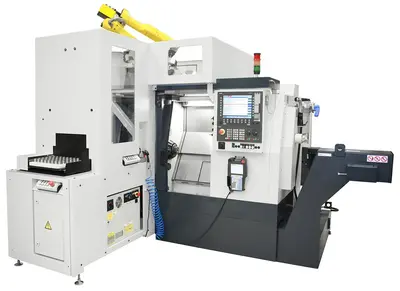

Automation ready with bar feeder interface and parts catcher options

Swing600 mm23.622"
Machining Length650 mm25.591"
# Axis22
Chuck Size250 mm9.8425"
Bar Capacity65 mm2.5591"
Power27 kW36.2 hp
Max RPM5,000 RPM5,000 RPM
Turning Dia400 mm15.748"
TailstockYesYes

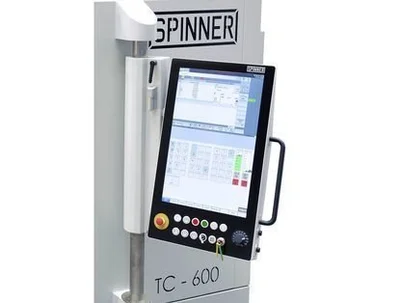

ControlCNC (Fanuc 32iTB)CNC (Fanuc 32iTB)
Dimensions2800 x 1750 x 2090 mm2800 x 1750 x 2090 mm
Weight5800 Kg5800 Kg
