New SPINNER VC850 | Vertical Machining Centers
ConditionNew
New

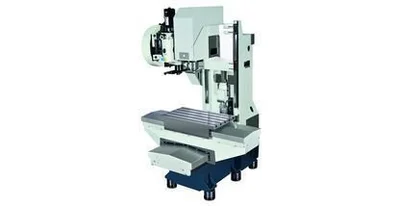

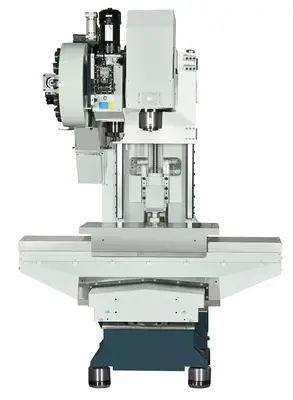

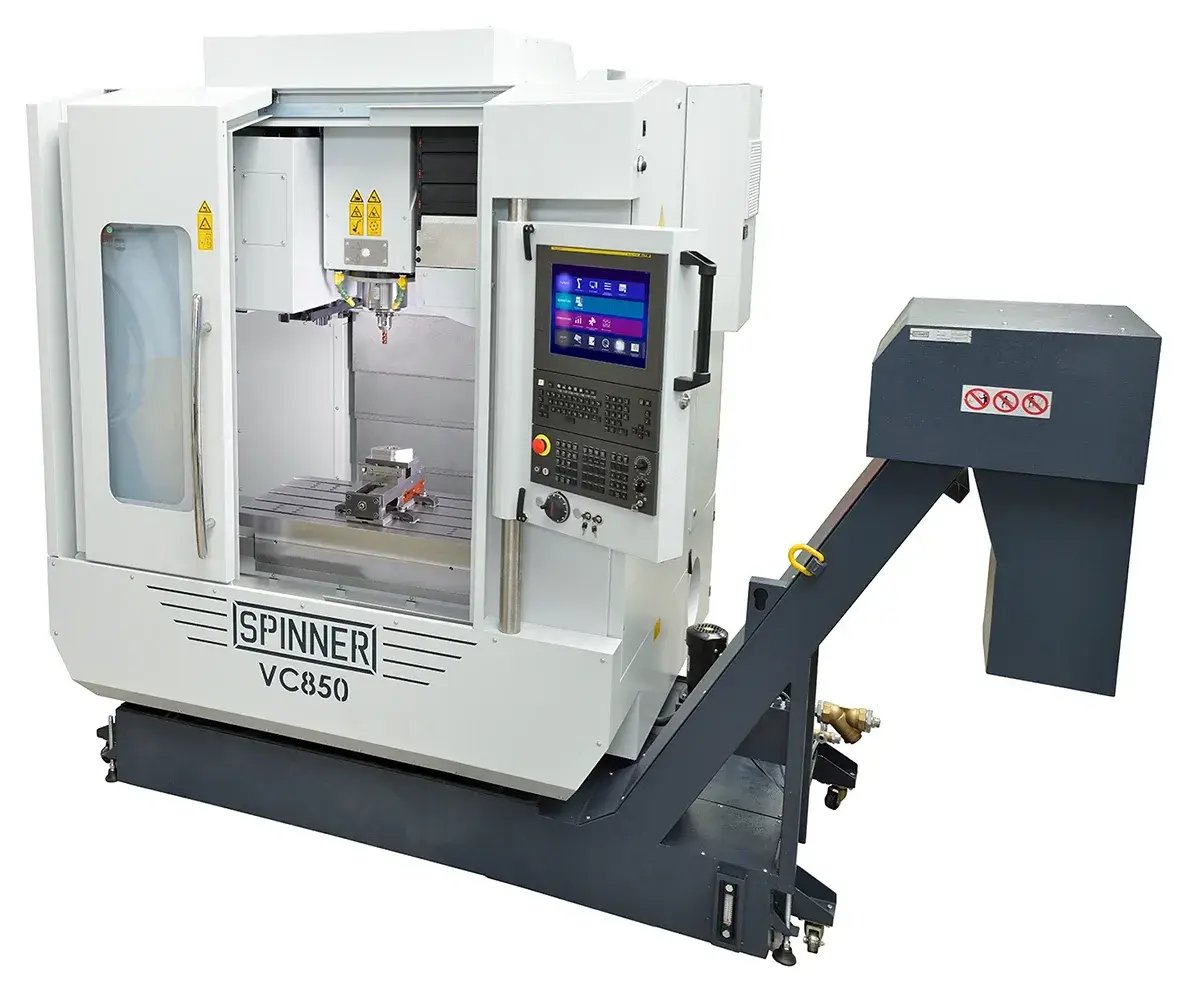

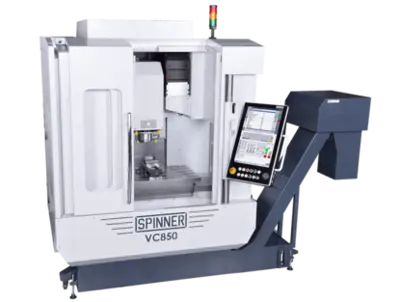

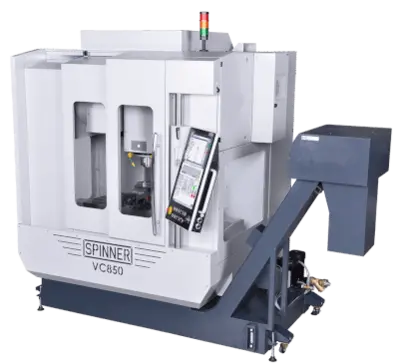

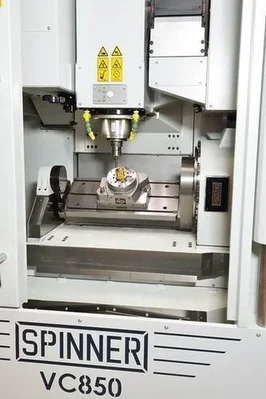

The VC850 is a 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for workpieces up to 35.4 x 20.1 x 17.7 in / 1,102 lbs and accommodates parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.

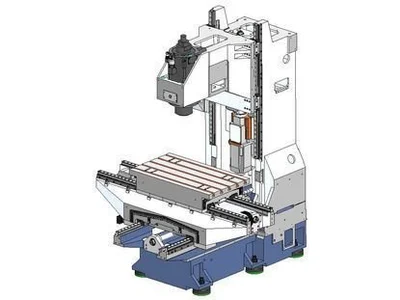

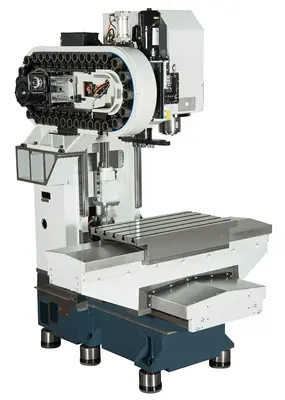

Designed as a compact machining center, the VC850 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
The VC850 is a 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for workpieces up to 35.4 x 20.1 x 17.7 in / 1,102 lbs and accommodates parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.
Designed as a compact machining center, the VC850 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
Imperial
| X | 33.46" |
| Y | 20.08" |
| Z | 20.08" |
| RPM | 12,000 RPM |
| # ATC | 48 |
| Taper | HSK63 |

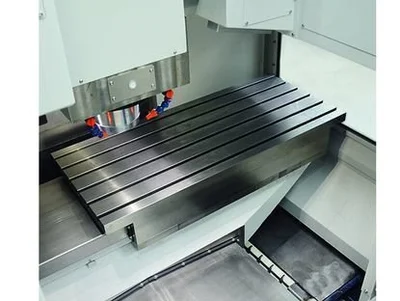

| Table-W | 20.08" |
| Table-L | 35.43" |
| # Axis | 3 |

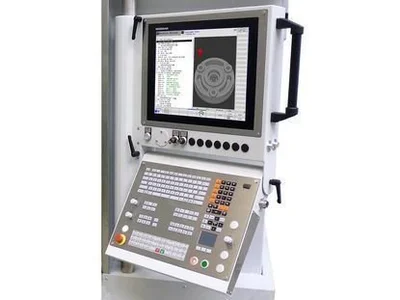

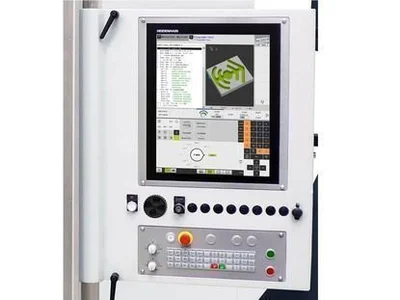

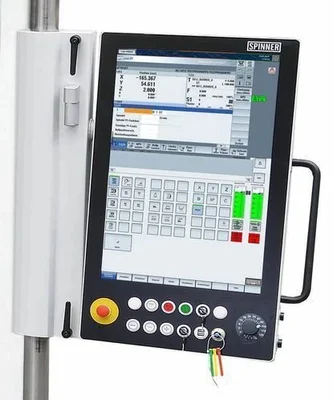

| Control | CNC (FANUC/SIEMENS/HEIDENHAIN) |
| Dimensions | 1850 x 1800 x 2420 mm |
| Weight | 4500 Kg |
