New SPINNER VC1650 | Vertical Machining Centers
ConditionNew
New

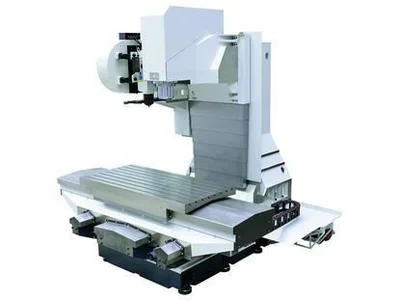

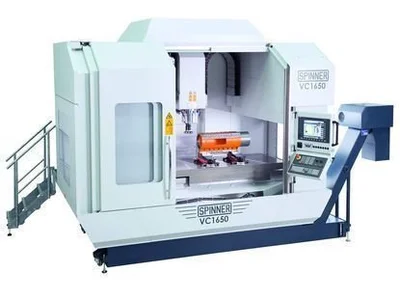

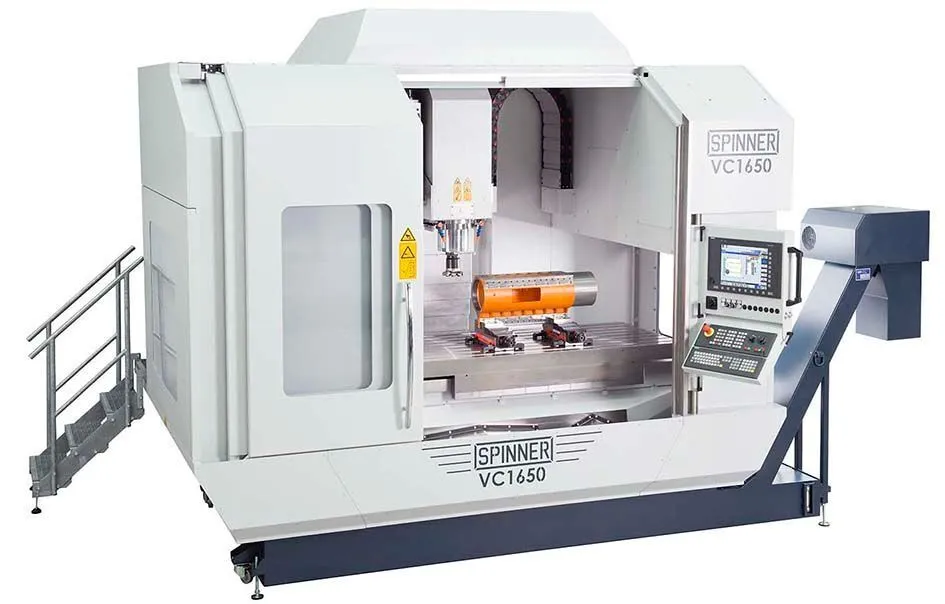

The VC1650 is a large 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for large workpieces with a 70.9 x 32.3 in / 14,409 lbs table to accommodate parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.

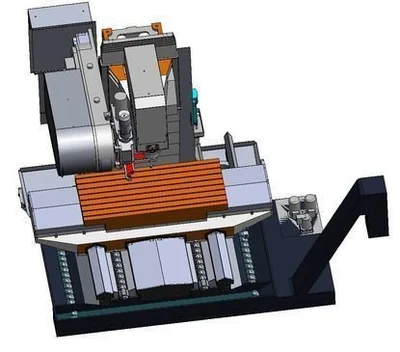

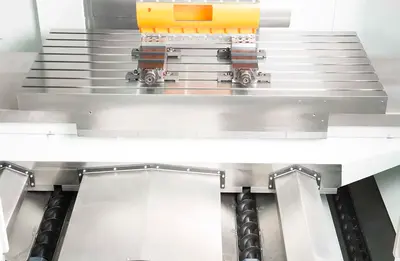

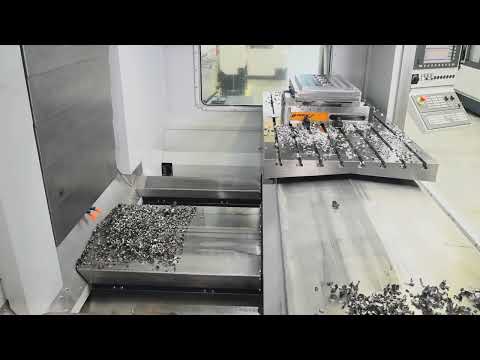

Designed as a large machining center, the VC1650 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
The VC1650 is a large 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for large workpieces with a 70.9 x 32.3 in / 14,409 lbs table to accommodate parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.
Designed as a large machining center, the VC1650 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
Imperial
| X | 64.96" |
| Y | 32.28" |
| Z | 32.28" |
| RPM | 10,000 RPM |
| # ATC | 60 |
| Taper | SK40 |
| Table-W | 32.28" |
| Table-L | 70.87" |

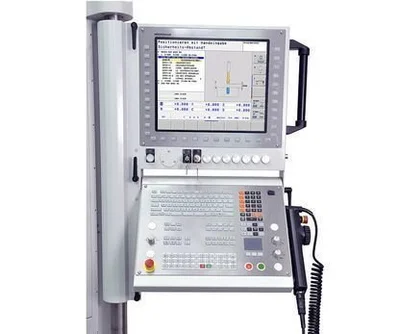

| Control | CNC (HEIDENHAIN TNC7) |
| Dimensions | 3350 x 2750 x 3150 mm |
| Weight | 14500 Kg |
