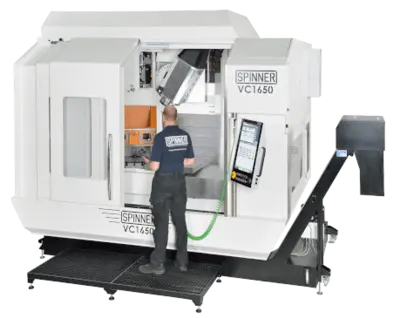

New SPINNER VC1650-5A | Vertical Machining Centers (5-Axis or More)
ConditionNew
New

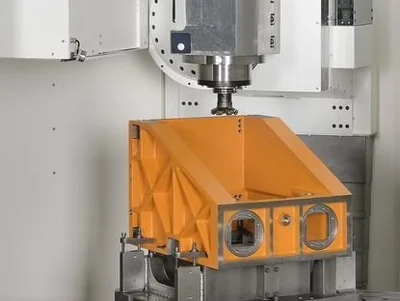

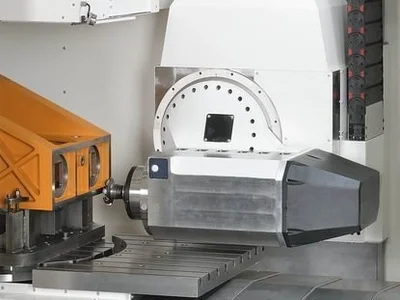

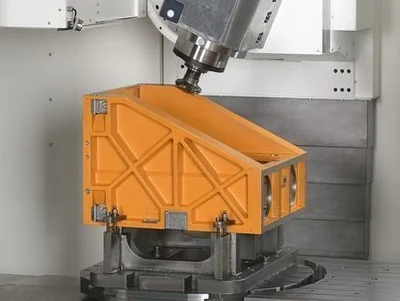

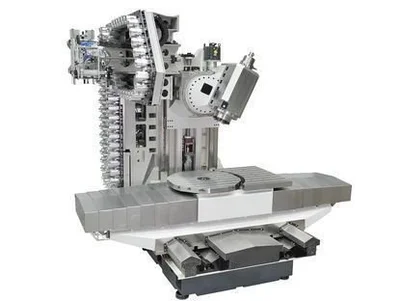

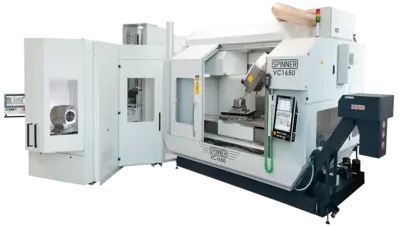

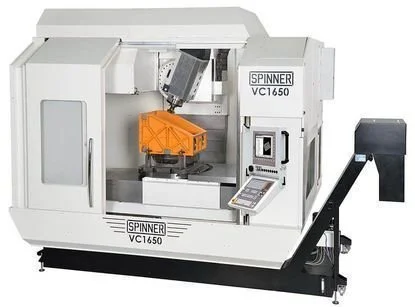

The VC1650-5A is a swivel head style 5-axis vertical machining center for high performance 5-axis simultaneous machining with spindle speeds up to 18,000 rpm. This machine has an integrated C rotary table that revolves around the Z-axis allowing for large heavy parts to be machined. The machine offers 5-sided and full 5-axis simultaneous machining for high accuracy applications such as mold-making.
The VC1650-5A is a swivel head style 5-axis vertical machining center for high performance 5-axis simultaneous machining with spindle speeds up to 18,000 rpm. This machine has an integrated C rotary table that revolves around the Z-axis allowing for large heavy parts to be machined. The machine offers 5-sided and full 5-axis simultaneous machining for high accuracy applications such as mold-making.

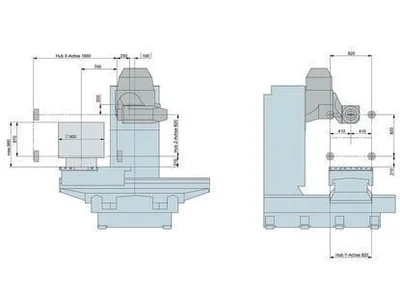

Imperial
| X | 64.961" |
| Y | 32.284" |
| Z | 32.284" |
| # Axis | 5 |
| Power | 29.5 hp |
| RPM | 14,000 RPM |
| Taper | SK50-BT50 |

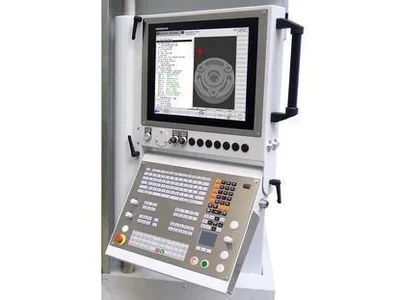

| Control | CNC (FANUC/SIEMENS/HEIDENHAIN) |
| Dimensions | 3550 x 2750 x 3200 mm |
| Weight | 16000 Kg |
