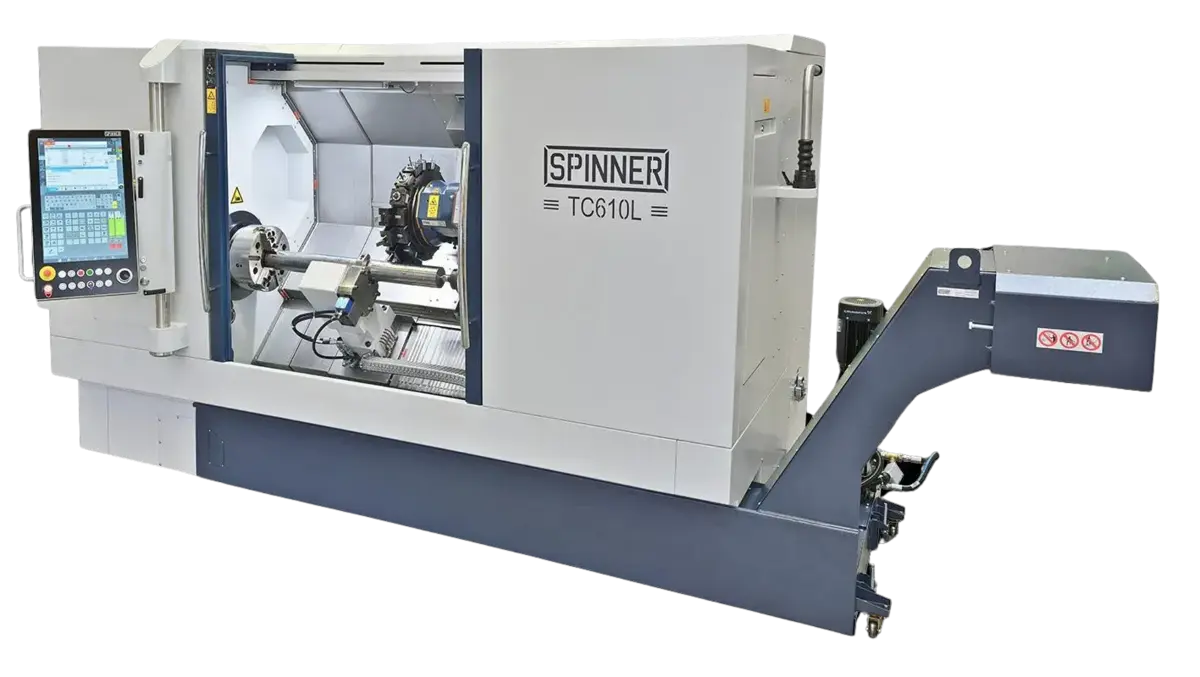

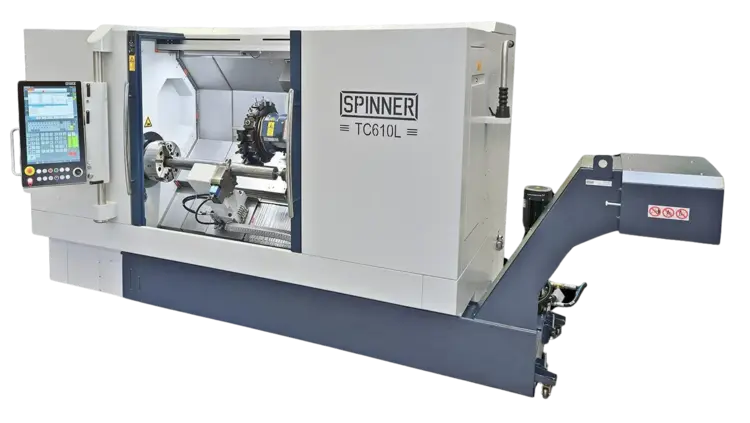

New SPINNER TC 610L | CNC Lathes

(253) 365-5802
mike@newvisionmachinetools.com
ConditionNew

Overview

Type:
CNC Lathes
Manufacturer:
SPINNER
Model:
TC 610L
Condition:
Build To Order
Status:
For Sale

Description

Large CNC lathe for long work requiring a steady rest. If you are looking for a workhorse long bed CNC lathe with Y-axis and live tooling the TC610L is a great choice.

Modern and dynamic built-in motor spindle with water cooling

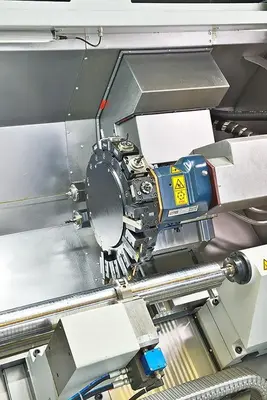

Dynamic servo-turret with adjustable tool change speed via feed override
Optional Y-axis and live tooling provides flexibility

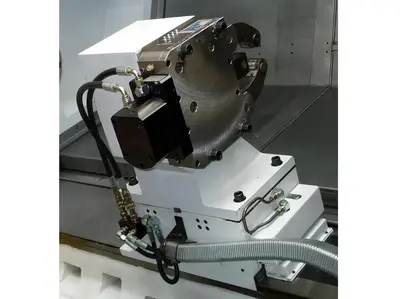

Programmable steady rest and tailstock

Swing600 mm23.622"
Machining Length1,250 mm49.213"
Chuck Size250 mm9.8425"
Bar Capacity85 mm3.3465"
Power60 kW80.5 hp
Max RPM3,400 RPM3,400 RPM
Turning Dia400 mm15.748"
Live ToolingYesYes
ControlCNC (Fanuc 32iTB)CNC (Fanuc 32iTB)
Dimensions3400 x 1950 x 2100 mm3400 x 1950 x 2100 mm
Weight6500 Kg6500 Kg
