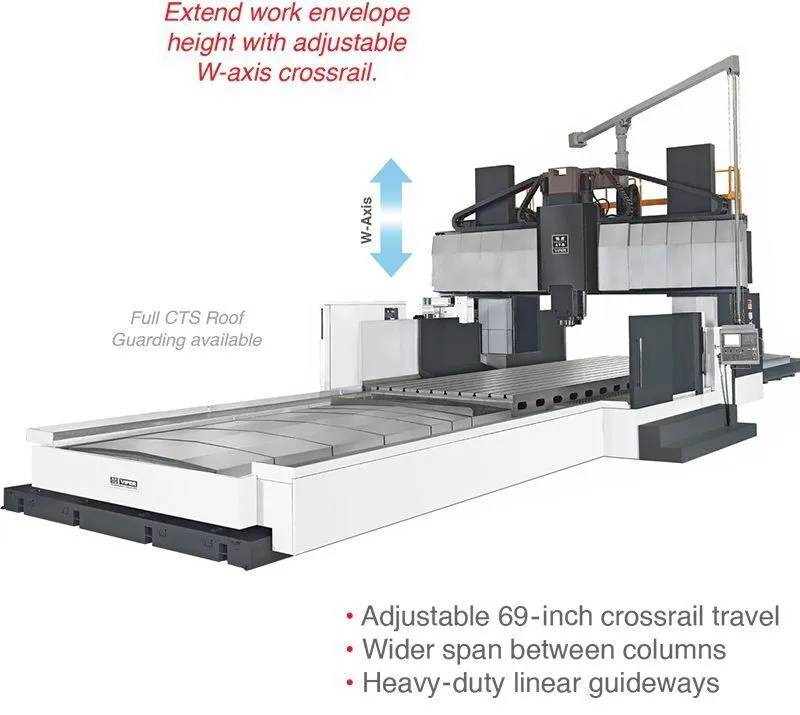

MIGHTY VIPER PMW - Extend work envelope height with adjustable W-axis crossrail.
ConditionNew
New
Features a dynamic adjustable height crossrail. Allowing operator to vary spindle-to-table distance. Four clamping locks secure crossrail vertical travel ( W-axis) against slipping to ensure travel and cutting accuracy.
Performance Specifications
X-Travel 160~401
Y-Travel 126 / 145 / 165
Z-Travel 35 / 43*
W-Travel 39 / 69*
Nose Taper #50
Speed Gear (rpm) 4000 / 6000*
Speed Built-in (rpm) 10,000*
Drive Motor** (hp) 30 / 50*
CNC Control Fanuc / Mitsubishi*
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 4232, 5232, 6232, 8232, 10232, 4237, 5237, 6237, 8237, 10237, 4242, 5242, 6242, 8242, 10242
