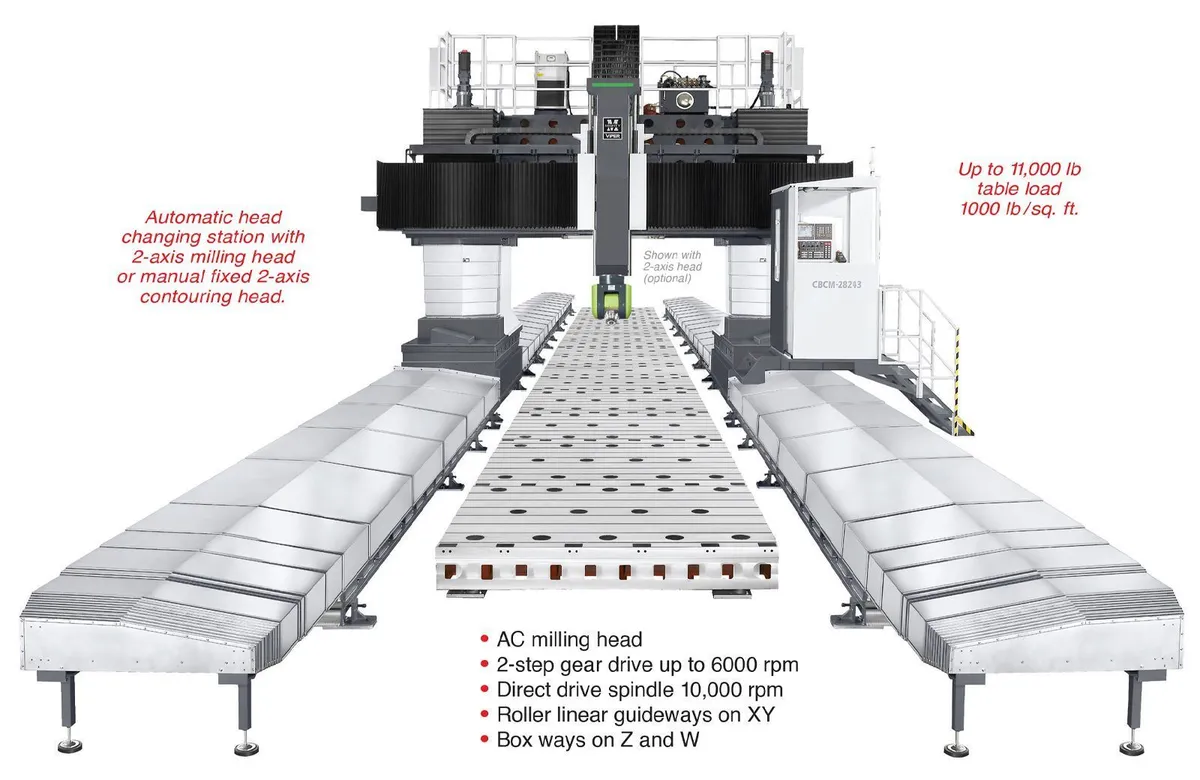

MIGHTY VIPER BCM - Automatic head changing station with 2-axis milling head or manual fixed 2-axis contouring head. Up to 11,000 lb table load.

EFFICIENT 5-AXIS MACHINING
Moving Column and Moving Crossrail
The BCM gantry machining center has a W-axis that allows the crossrail to move vertically over a range of 59˝ (1.5M). Progressive hydraulic clamping ensures accurate W-axis movement during cutting. Nose to table distance has up to 10 feet of clearance under the spindle.

Perform five-face machining with an angular head or 5-axis machining with a 2-axis contouring head. Smooth axial movement along hardened and rigid box ways on both the W-axis and Z-axis.

PERFORMANCE FEATURES
• Rigid tapping
• X/Y/Z absolute encoder
• Table sizes up to 1417˝ (L) × 138˝ (W)

Performance Specifications
Model xx38 xx43 xx48 xx53
X-Travel 244~1425
Y-Travel 150 169 189 209
Z-Travel 39 (47/59)*
W-Travel 39 (47/59)*
Nose Taper BT-50
Speed (rpm) 6,000
Feed Rate (ipm) 472 / 472 / 472 / 78
Motor** (hp) 29 135 (40 / 50)*
Unit= inch | *Optional accessory | **30 minute rating

Available Models: xx38, xx43, xx48, xx53
