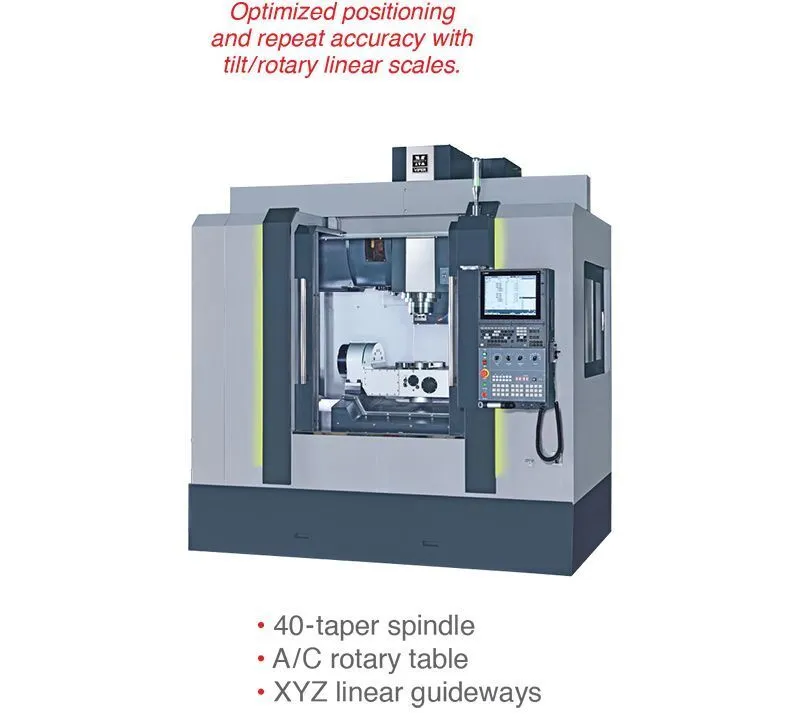

MIGHTY VIPER LRZ-U 400-500 - Optimized positioning and repeat accuracy with tilt/rotary linear scales.
ConditionNew
New
Features a rotary table that enables single setup parts machining. A/C axis rotary table offers 4+1 axis angle 5-face machining. Tilt axis and rotary axis coordinate with linear scale to ensure optimized positioning and repeatability.
Performance Specifications
Machine Model 400 500
X-Travel 26 22
Y-Travel 24 25
Z-Travel 20 24
A-Axis Tilting Range +30° ~ -120°
C-Axis Tilting Range (cont.) 360°
Nose Taper #40
Speed DDS (rpm) 12,000 / 15,000*
Speed Built-In (rpm) 20,000
Drive Motor** (hp) 10/15
CNC Control Fanuc
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 400, 500
