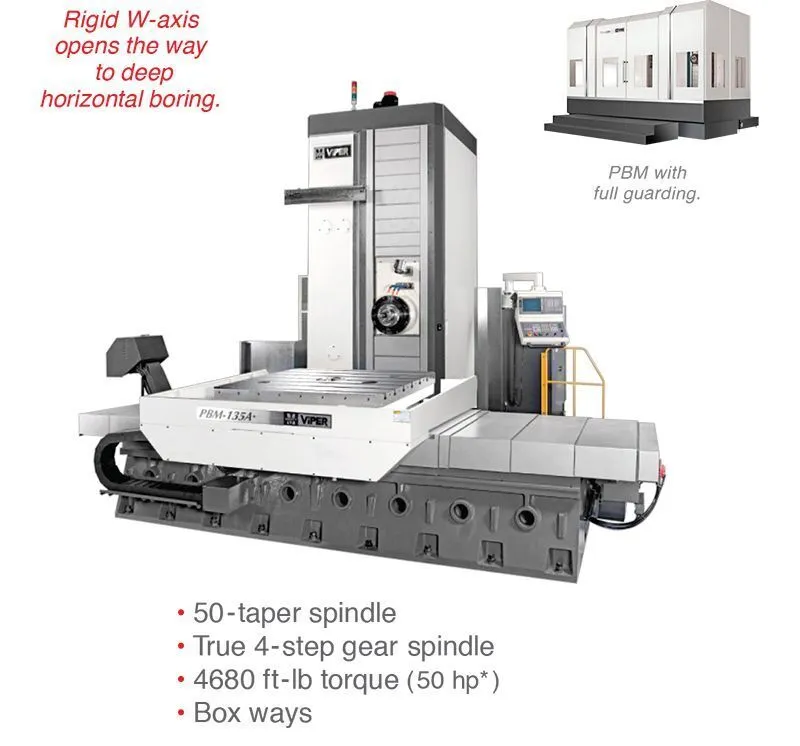

MIGHTY VIPER PBM - Rigid W-axis opens the way to deep horizontal boring.
ConditionNew
New
Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
Performance Specifications
Machine Model 115 135A 135B
X-Travel 79 98 98
Y-Travel 63 79 75
Z-Travel 59 59 59
W-Travel 20 27.5 27.5
B-Axis Rapids (rpm) 2 2 2
Table Size 55×63 55×63 63×71
Quill Diameter 4.3 5.0 5.0
Nose Taper #50 #50 #50
Speed Gear (rpm) 3000 2500 2500
Drive Motor** (hp) 25 / 35* 35 / 50* 35 / 50*
XYZ Rapid (ipm) 590 394 394
Unit= inch | *Optional accessory | **30 minute rating
Available Models: 115, 135A, 135B
